At a Glance: This guide explains how stereolithography (SLA) 3D printing works, from UV laser curing in a resin vat to post-processing and final part finishing. It covers the key advantages of SLA printing, common resin types, and typical applications such as prototypes, wind-tunnel models, composite tooling, and investment casting master patterns. The article also compares SLA with other 3D printing technologies including FDM, DLP, PolyJet, and SAF.
Stereolithography (SLA) is one of the oldest additive manufacturing processes around — and still the go-to when engineers need parts with tight tolerances and clean finishes. The concept behind SLA 3D printing is simple: a UV laser cures liquid photopolymer resin into solid plastic, one layer at a time.

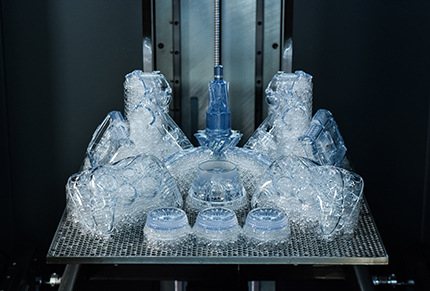

The resin sits in a resin vat while the laser traces each cross-section across the surface. Wherever it hits, the material hardens almost instantly. The SLA printer then drops the build platform a fraction and repeats the process until the part is complete.
It delivers a precision that makes SLA printing stand out for accurate, detailed and high-surface quality prototypes and models.
Stereolithography (SLA) 3D printing is an additive manufacturing process that uses a vat of liquid, UV-curable photopolymer resin and a precision UV laser to build parts one layer at a time. The laser cures the resin, gradually forming the part within the vat, while the build platform lowers to the specified thickness, repeating the process until the part is fully formed. After printing the build platform lifts the finished part out of the resin vat. Support material is removed and the parts are cleaned in solvent to remove uncured resin. Finally, parts are placed into a UV curing unit to complete the polymerization process and allow parts to achieve their full mechanical properties.

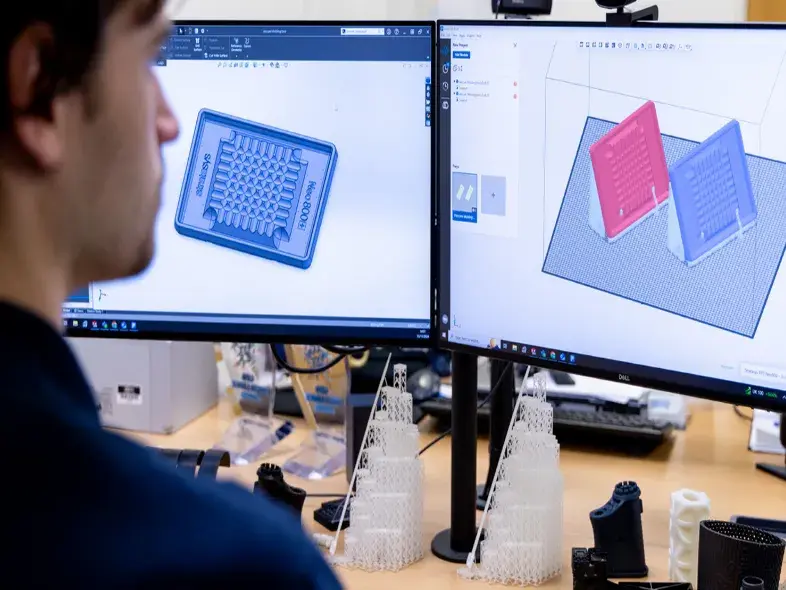

The process begins with a part designed in CAD which is then exported as an STL, STEP or OBJ file. The build preparation software is then used to orientate and position the geometry on the platform before supports are generated and the build is then sliced to the correct layer thickness. This generates the slice layer contours that the scanning systems follows to draw the part on the printer.
The build file is then transferred to the target printer where it can be selected and loaded for printing. The platform will move to the start position and the resin within the vat is levelled.
When the print starts, both UV laser and scanning system combine to precisely draw the internal cross section, border and supports of the layer on the resin surface. Once the laser hits the resin, photopolymerization begins and the liquid hardens into solid plastic almost instantly. The path of laser beam is tightly controlled allowing it to form very fine details and sharp edges that most other processes would blur or lose entirely.
After each layer of the part cures, the platform dips down allowing resin from the vat to flows over the geometry before then moving to the correct layer height. The recoater blade then travels across the surface of the parts ensuring a precise layer of resin is applied. Once the resin has levelled, the laser scans the next layer, and the cycle continues until the build is complete.

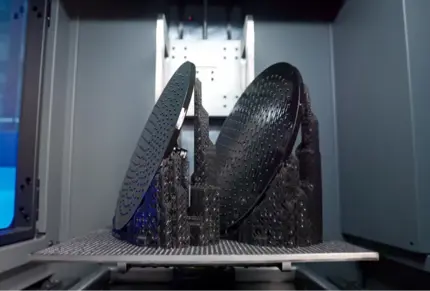

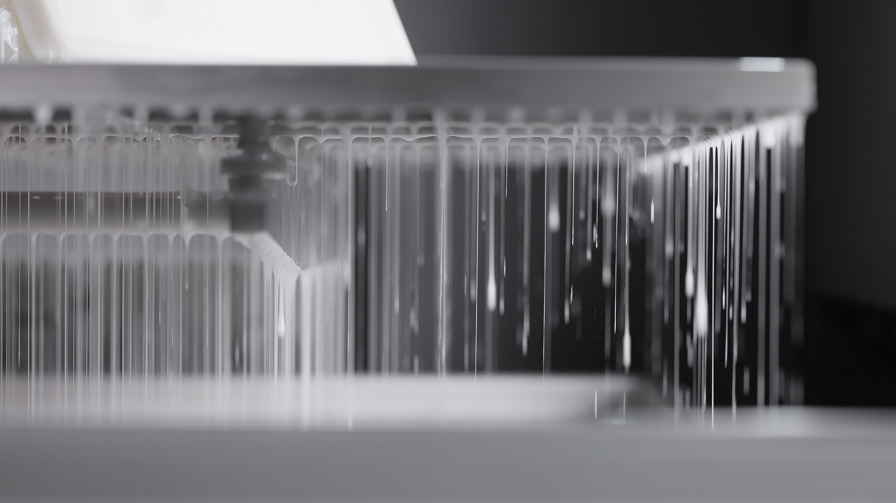

When it's done, the platform rises out of the resin vat with the finished part attached. From there supports are removed by hand and it gets washed to remove uncured resin. It is then post-cured under UV light to achieve its final mechanical properties. Any additional finishing will depend on the application.

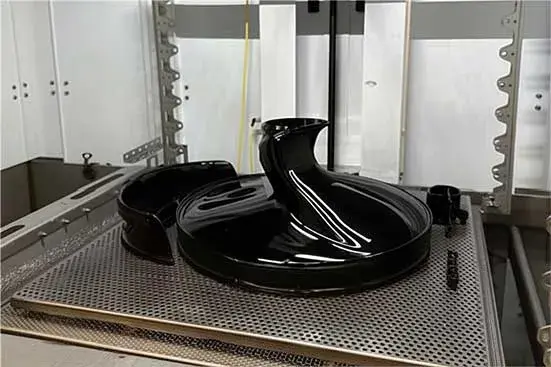

When a part comes off an SLA printer, it isn’t ready to use yet. The part is still attached to the platform, coated in uncured SLA resin, and the material hasn’t reached its final mechanical properties.
Post-processing removes excess resin, completes the curing reaction, and prepares the part for use. The exact workflow varies depending on the SLA 3D printer and material, but the overall steps are similar across most SLA printing systems.
First the part is removed from the platform and washed to remove any remaining liquid resin. Cleaning is typically done using isopropanol (IPA), propylene carbonate, or TPM, either manually or in a wash station. This removes residual photopolymer resin that could affect surface quality or curing. After washing, parts are usually left to dry so any remaining solvent can evaporate.
Next, the part goes into a UV curing chamber. At this point the part is still in a “green state,” meaning the polymerization reaction is not fully complete. UV post-curing finishes the reaction and brings the material up to its final strength and stability.
This step is important for functional prototypes and other SLA models that require consistent mechanical properties.

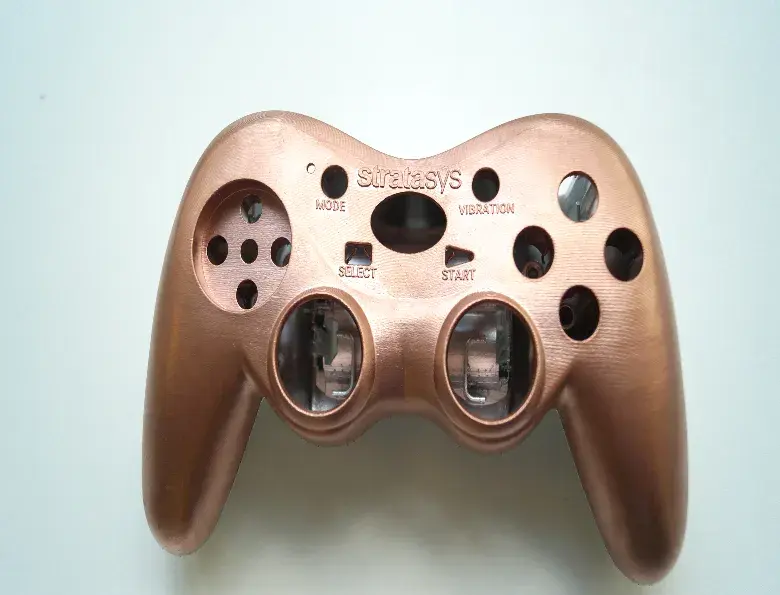

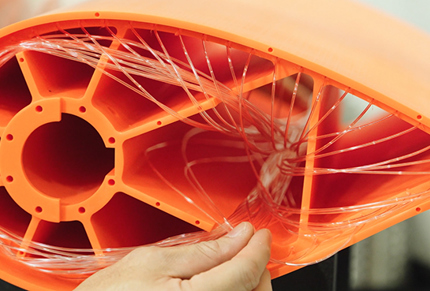

Once post-curing is complete, the supports generated during build preparation are removed. Additional finishing steps like sanding, polishing, painting, or coating can be applied depending on the application, though because SLA printing already produces smooth surfaces and fine details, minimal work is usually needed.

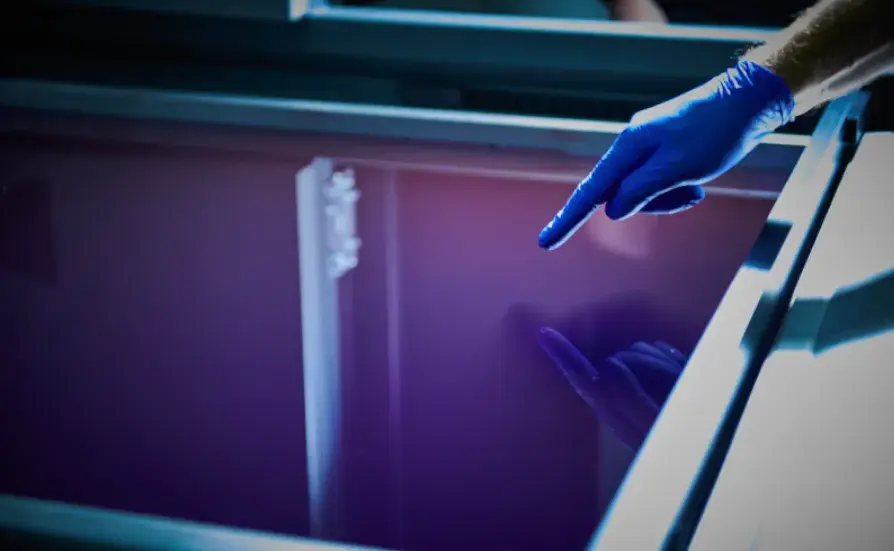

Uncured SLA resin should be handled carefully. Photopolymer materials can irritate skin and should not be touched directly. Gloves and safety glasses are standard PPE when handling resin, removing parts from an SLA 3D printer, or cleaning components. Good ventilation is also recommended when working with resins and solvents, and it’s important to follow the manufacturer's safety guidelines.
SLA printers use photopolymer resins that harden when hit with ultraviolet light. Different SLA resins have different mechanical, thermal, and optical properties. That range is a big part of what makes SLA useful across so many applications, from accurate prototypes and functional testing through to master patterns and specialized tooling.
|
Resin type |
Typical properties |
Example applications |
Example material |
|
General-purpose resins |
High detail, smooth surfaces, good dimensional accuracy |
Design validation models, visual prototypes, fit and form testing |
|
|
Tough engineering resins |
Improved impact resistance and durability |
Functional prototypes, housings, mechanical components |
|
|
Clear / water-resistant resins |
Transparency, smooth internal surfaces, low moisture absorption |
Fluid flow testing, lighting components, transparent SLA models |
|
|
High-temperature resins |
High stiffness and thermal resistance |
Wind tunnel models, tooling patterns, functional SLA prototypes |
|
|
Castable resins |
Clean burnout and low ash content |
Investment casting patterns for metal parts |
|
|
Thermoplastic-like resins |
Balanced strength and durability similar to thermoplastics |
Engineering prototypes, testing components |
The exact materials available will vary depending on the SLA printer and vendor, but these categories show the range of material properties that SLA can support.
Stereolithography 3D printing is widely used when parts require high detail, smooth surfaces, and precise geometry. The controlled UV laser curing process can handle fine detail that other additive manufacturing technologies struggle with, which is why teams keep choosing SLA printing for high-fidelity prototypes, detailed models, casting patterns, and tight-tolerance components.
Surface finish is where SLA really stands out. The UV laser traces fine patterns across the resin vat with enough precision to produce thin walls, small features, and intricate textures that extrusion-based processes tend to blur or lose. Because each layer cures inside liquid resin, there's minimal layer line visibility in the finished part. This means there’s less finishing work and cleaner results for visual prototypes, cosmetic models, and design validation.
Dimensional accuracy is another area SLA printing handles well. Parts come out close to the original digital model, which starts to matter a lot when you're working with small components, tight tolerances, or detailed assemblies. SLA prototypes are a solid choice for fit and form testing, or any precision model where the geometry needs to actually be right.
Each layer chemically bonds to the one below it during curing. This results in near-isotropic parts, meaning strength is similar in multiple directions. Isotropic strength is not something you can always count on with other additive processes, so for functional testing and evaluation, SLA’s consistency makes a difference.
Because the resin fully cures during both printing and post-curing, SLA parts come out dense and non-porous. Depending on the material and design, that usually means the part can hold fluid or air pressure without leaking. It’s useful for fluid flow testing, mold patterns, medical models, and functional prototypes where a sealed surface isn't optional.
Stereolithography is one of several additive manufacturing processes used to produce plastic parts and prototypes — and each one works differently, with its own strengths and tradeoffs. SLA printing tends to win out when surface finish, detail, and dimensional accuracy are the priority. For raw durability, speed, or production-scale output, other technologies might be a better fit. Knowing where SLA sits relative to the alternatives makes it easier to pick the right process for the job.
FDM® technology builds parts by extruding melted thermoplastic filament through a heated nozzle. The material is deposited layer by layer to form the final part.
FDM is widely used for durable prototypes, tooling, and production parts because it uses engineering thermoplastics such as ABS, nylon, or polycarbonate.
While both processes can easily handle large-scale parts on larger industrial printer, teams usually opt for SLA printing when they need greater precision, smoother surfaces, and finer detail. FDM parts tend to be stronger and more heat resistant though, which makes them a better fit for structural or functional components that will undergo rigorous testing.
SLA and DLP are both resin-based. They both cure liquid photopolymer with ultraviolet light, but they go about it differently. SLA uses a UV laser that traces each layer; DLP flashes an entire layer at once using a projector.
That difference makes DLP faster for small parts or batches. SLA printing is generally valued for consistent precision and surface quality, particularly on larger parts or more complex geometries. In practice both turn up regularly for prototypes, dental models, and casting patterns.
PolyJet™ technology works by jetting tiny droplets of photopolymer onto the build platform and curing them with UV light. Its big advantage is the ability to combine multiple materials and colors in a single print, which makes it useful for realistic prototypes, overmold simulations, and anatomical models. It also needs less post-processing, so is faster to produce a part.
SLA printing tends to be the choice for large high-detail models, casting patterns, and precision prototypes. If you need multi-material capability, color, or soft-touch materials in the same part, PolyJet is probably the better option.
SAF® technology is a powder-based process built for production-scale manufacturing — a fusing agent is applied to layers of powder and fused with infrared energy, and the process can knock out large numbers of parts in a single build.
SLA printing operates in a different part of the development cycle. It's typically used earlier on for detailed prototypes, design validation, and precision models. SAF is more at home once you're past that stage and need durable, functional parts at volume.
Stereolithography 3D printing is most often chosen when teams need highly accurate parts, smooth surfaces, or complex geometries that other processes struggle to reproduce cleanly. In practice, that usually means things like detailed prototypes for design evaluation, accurate models for fit and form testing, intricate geometries or thin features, and casting patterns for investment casting workflows. It's also a natural fit when a part needs to be watertight or hold fluid. Enclosure validation and fluid flow testing are common examples.
That said, SLA isn't the right tool for everything. If the priority is impact strength, high-temperature performance, or producing end-use parts at volume, something like FDM or a powder-bed process is probably going to serve better.
Which is why a lot of engineering teams don't treat it as an either/or. SLA printing handles the early, detail-critical work, like high-detail prototypes, wind tunnel models, investment casting patterns, tooling components.

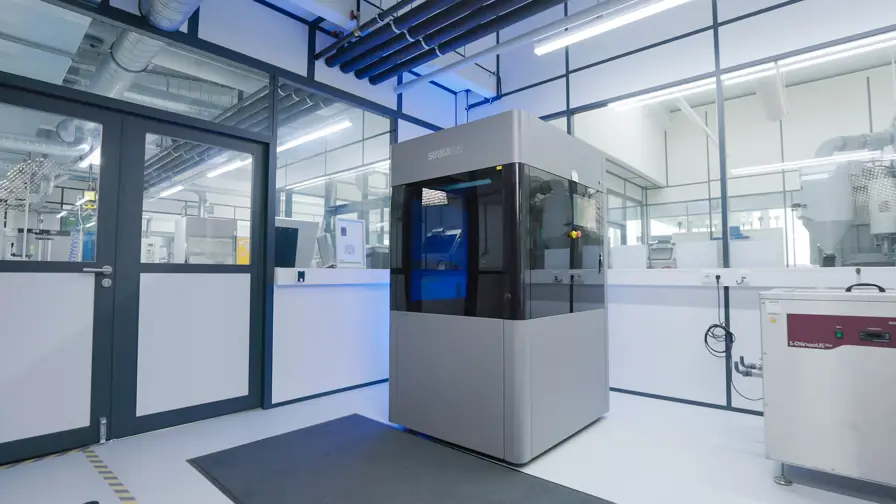

Not all SLA printers are built for the same job. There's a meaningful difference between a professional system sitting in an engineering office and a large-format industrial machine like Stratasys Neo® running parts for automotive or production tooling. Which one makes sense depends on where stereolithography fits in the workflow and what the parts actually need to do.
For product development teams, engineering departments, and design studios, a professional SLA printer is usually handling the detail-critical early-stage work, like high-fidelity prototypes, design validation models, fit and form components, and casting patterns. SLA printing is reknowned for smooth surfaces and dimensional accuracy, so engineers can physically evaluate a design before anyone commits to tooling or production. That's a fast, low-risk way to catch problems early.

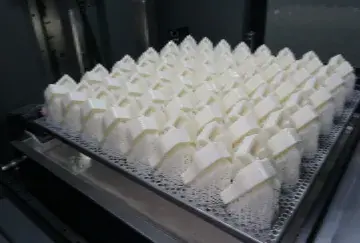

These industrial SLA systems are built for larger parts, higher throughput, and workflows where reliability and repeatability are crucial. They are commonly used for applications such as wind tunnel models, large-format prototypes, manufacturing tooling, investment casting patterns, and selected end-use parts.
For applications like aerodynamic testing or precision tooling for automotive, the accuracy and surface quality of a system like Neo Stereolithography is what makes it viable.
Stereolithography shows up across a lot of industries, and for good reason. When precision, surface quality, and complex geometry all matter, SLA printing covers a lot of ground, from early-stage prototyping through to specialized production parts.

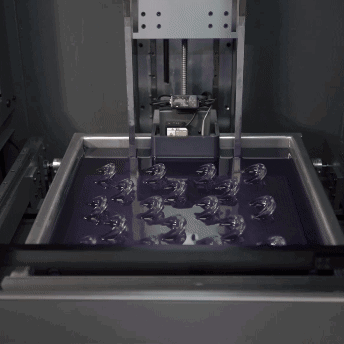

SLA printing is often used to produce master patterns for investment casting.
The printed part becomes the pattern. A mold is formed around it, and when the mold is heated, the castable SLA resin burns out, leaving a cavity that is filled with molten metal. Materials such as antimony-free SLA resins are made to produce a cleaner burnout with very low ash content, which means the final metal component picks up the geometry accurately. Aerospace, automotive, and precision manufacturing all use this approach because it's a practical way to produce complex metal components with shorter lead times and lower costs than traditional tooling or machining methods.

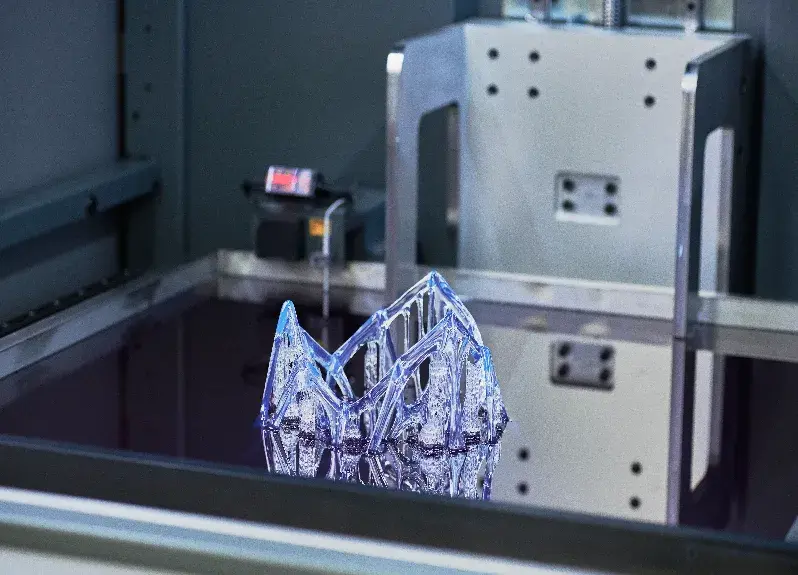

SLA printing is well suited for producing fluid flow components used in testing, validation, and engineering development.

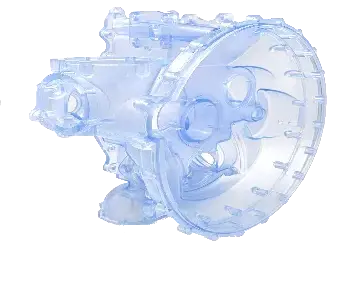

Smooth internal surfaces and accurate geometries make SLA printing a good fit for fluid flow work. Channels and manifolds, pump and valve housings, air ducts, ventilation components, test parts for fluid dynamics or water-intrusion studies — surface finish matters here because even small imperfections skew results. SLA parts can usually go straight into functional testing or experimental setups, which helps teams validate designs well before committing to production.
The right SLA 3D printer depends on several things, such as part size, materials, and how it fits into your existing workflow. Smaller desktop SLA printers tend to suit design models and small prototypes well enough. But when you step up to an industrial system, you're looking at machines designed for large parts, 24/7 reliable operation, and production-oriented workflows, supported by dedicated software, materials and service infrastructure that a smaller machine simply isn't built for.
When evaluating options, build volume, accuracy and surface quality, material compatibility, and reliability are the factors that tend to matter most. Different vendors bring different printer architectures, software, and material portfolios to the table, and those differences affect part quality, workflow efficiency, and what the system can actually be used for.
For teams that depend on stereolithography for demanding engineering or manufacturing work, industrial systems like Neo stereolithography printers are built to deliver the accuracy, repeatability, and build capacity those workflows require.
