At a Glance: This article covers the main rapid prototyping methods available today — FDM, SLA, SLS, CNC, and rapid tooling — when to use each one, and where they fall short. We'll also walk through how to pick the right process based on what you're actually trying to validate, and how the best teams structure their prototyping workflow to move faster without burning time on the wrong builds.

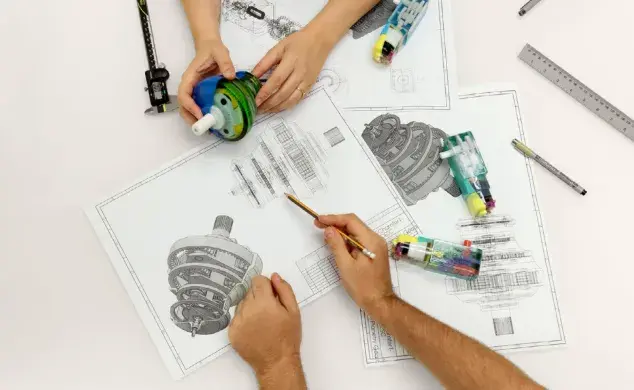

Rapid prototyping is an iterative product development process used to quickly fabricate physical parts or models directly from CAD data. The aim is to get hardware in hand early enough to validate designs, catch problems before they're expensive, and keep development moving without waiting on traditional manufacturing lead times.
Physically, what you end up with depends on where you are in development:
One real advantage of additive manufacturing here is that complexity is basically free. A feature that would add machining time and cost doesn't add anything on a printer, so there's no reason to simplify your geometry just to make a prototype. You can test the real design, not a simple version of it.

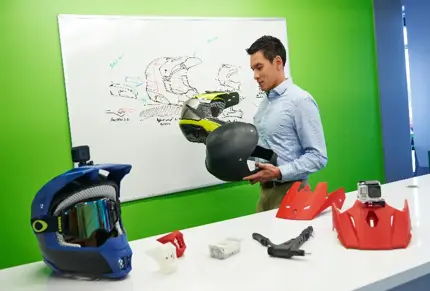

In most engineering organizations, development rarely moves in a straight line. Instead, teams cycle through an iterative process: design, prototype, test, and refine. This iterative cycle is often called the prototyping loop, where engineers design, prototype, test, and refine until the design stabilizes.
Let’s explore this in the latest solution guides. 3D printing has changed how engineers approach early development. You can take a concept straight from CAD to a physical part in hours, which makes it a lot easier to communicate ideas, run tests, and refine the design before committing to anything downstream.
The process follows the same basic sequence regardless of which technology you're using. You start with a 3D CAD model, then convert and prepare the file for your 3D printer, and then it builds the prototype. Post-processing follows; whether that's removing supports, sanding, or surface treatment depending on what the part needs.
Everything begins with a digital model created in CAD software. Engineers design the geometry, define wall thickness, assemblies, and interfaces, and simulate how the part should behave.
Before fabrication, the CAD file needs to be converted into a format the machine can read. For most 3D printing workflows that's an STL format, which breaks the geometry down into a mesh of triangles. Other processes, like CNC, use different formats built around tool paths and mold geometry.
Depending on the manufacturing process:
This stage prepares the instructions needed to produce the prototype.
The prototype is produced using the selected method, such as:
Each process has strengths depending on the testing goal.
After fabrication, most parts need some work before they're ready to test. That might be pulling off supports, cleaning up the surface, curing or heat treating, or machining any interfaces that need tighter tolerances. What's required depends on the process and what the part is actually going to be used for.
The main differences between rapid and traditional prototyping come down to speed and automation. With rapid prototyping you're using 3D printing and CAD to get parts in hours. Traditional prototyping means manual work, tooling, and machining, and you're likely looking at days or weeks before you have something physical to test.
3D printing handles complex parts in hours. Traditional processes usually mean multiple setup steps or tooling fabrication before you even start cutting material.

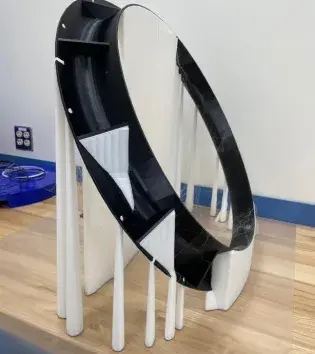

Real-world examples show how much that speed changes development workflows. Daikin printed a full-scale fan inlet funnel prototype in four days for about $800. That’s an 87% lead time reduction and 92% cost savings compared to machining the tooling.
Innodesign cut prototype turnaround from two weeks to eight hours using PolyJet. Designers could test a concept the same day it was modeled rather than waiting on a model shop.

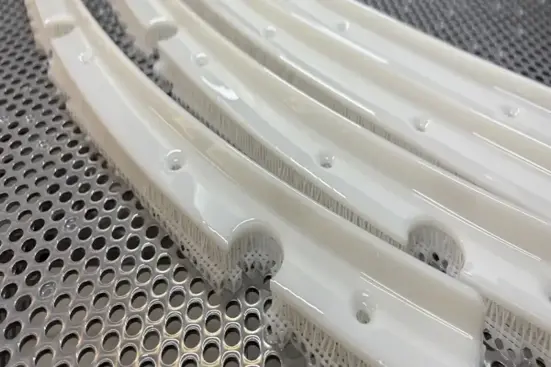

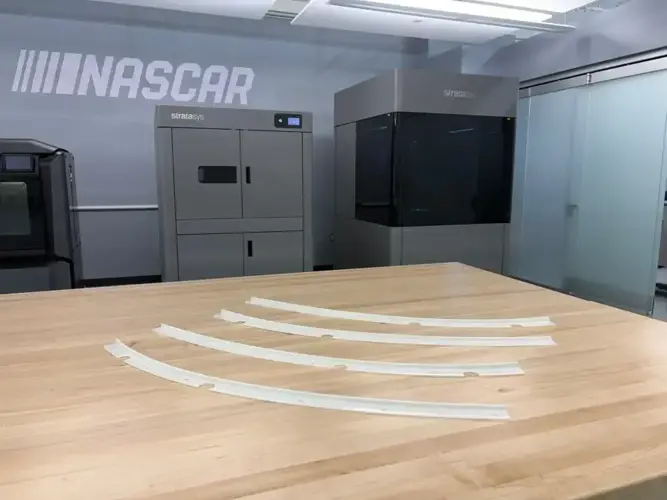

Rapid prototyping cuts out tooling costs entirely, and updating a design between iterations is as simple as reworking the CAD file, rather than scrapping or reworking physical tooling. A few real-world examples show how much that adds up. Motorsports engineers at NASCAR cut aerodynamic prototype costs by roughly 50% and shortened development cycles by a full week by replacing traditionally machined wind-tunnel components with SLA-printed parts.

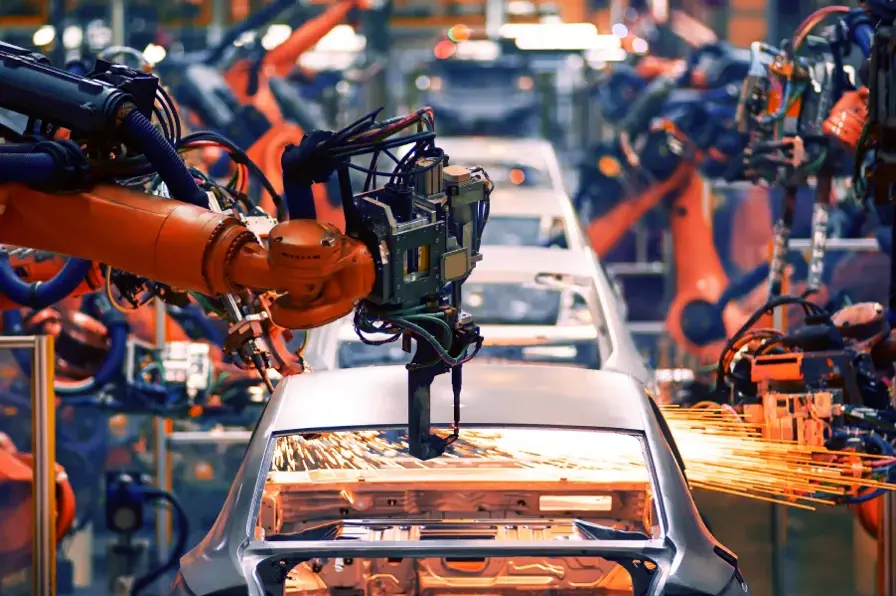

Automotive manufacturers see similar gains in production tooling. At General Motors, they reduced the production time of a manufacturing component by 80% by switching from machined tooling to an FDM-printed nylon part.
Additive manufacturing doesn't care how complex the geometry is. Internal channels, lattices, integrated assemblies. None of that adds cost the way it would on a mill or lathe.
That freedom lets engineers prototype designs that would be difficult or impossible to fabricate traditionally. Internal ducts, cable routing paths, consolidated assemblies, and multi-part mechanisms can be printed directly and tested early in development.
This is particularly useful when geometry itself is the risk being tested; airflow paths, packaging constraints, or internal structures that would normally require several machined parts to assemble and evaluate.
Traditional manufacturing still supports the widest range of engineering materials, particularly when prototypes must match final metal properties exactly.
However, modern additive manufacturing now includes a wide range of engineering polymers that support functional testing and validation. Materials such as nylon, polycarbonate blends, and high-temperature thermoplastics allow engineers to test snap fits, clips, housings, and structural components under real operating conditions.
Rather than choosing one approach over another, many teams use a hybrid prototyping workflow.
3D printing is often used when the next engineering decision depends on geometry, assembly fit, or iteration speed. CNC machining may be used when the decision depends on precise material behavior or tight tolerances.
In practice, combining the two methods often allows teams to converge on a design faster by using the right tool for the specific validation task.
|
Factor |
Rapid Prototyping |
Traditional Prototyping |
|
Speed |
Hours to days |
Days to weeks |
|
Cost per iteration |
Low |
Higher |
|
Geometry complexity |
High |
Limited |
|
Material fidelity |
Moderate |
High |
|
Ideal use |
Design and functional iteration |
Final validation |
Rapid prototyping's main advantages are faster iteration and lower development costs, but the practical impact goes further. You can run functional testing earlier in the project, validate designs before tooling is involved, communicate progress with something physical rather than a CAD screenshot, and prototype geometry that would be difficult or impossible to machine
The limitations of rapid prototyping include high initial equipment costs and there are material constraints for certain 3D printing technologies. While efficient, teams can face issues with surface finish and dimensional accuracy with particular technologies, and inter-layer bonding concerns that can affect structural strength and size restrictions imposed by the machine’s build volume.
Industrial additive manufacturing systems require significant upfront investment. Most organisations offset that over time through faster iteration, fewer outsourced builds, and lower per-part costs, but for some teams the initial outlay is still a barrier.
Each process works with a specific material set. FDM uses thermoplastic polymers, SLA uses photopolymers, SLS uses nylon powders. If the prototype needs to match exact production material properties, that can narrow your options.
In practice, most additive materials are engineered to approximate common production plastics closely enough to test fit, function, and durability. Engineering thermoplastics like polycarbonate, nylon, and ULTEM™ cover structural performance testing, while multi-material technologies like PolyJet let you simulate different material characteristics within a single build.
When you genuinely need exact production materials, the usual approach is to use additive for early iterations and bring CNC in later.
Some processes need post-processing to hit tighter tolerances or acceptable surface finish, like sanding, machining, or coating. It’s worth factoring in when you're choosing a process, especially if the prototype is going into a functional test or a stakeholder review.
Layer-based processes produce parts that aren't equally strong in all directions. Print orientation affects structural performance, so it's worth thinking about load direction when you're setting up the build.
If the part is bigger than the build volume, you're splitting it and assembling afterwards. For large prototypes that's often fine, but it adds time and means bonded joints are part of the design. (Although some printers, especially SLA and FDM, can handle very large parts in a single build.)
3D printing is the most common rapid prototyping method because the path from CAD to physical part is direct, with minimal setup, parts back overnight, complex geometry built without extra manufacturing steps. You can run multiple design variants in the same cycle without it costing more.
Which technology you use depends on what you're actually trying to test. Mechanical strength, surface finish, material behaviour, or visual accuracy all point toward different processes.
Below are several of the most common technologies used for rapid prototyping.
FDM builds parts by depositing thermoplastic filament layer by layer. Because it uses engineering thermoplastics, it's the go-to for functional prototypes, tooling concepts, and larger components where mechanical performance actually matters.
FDM is the natural choice when you need a prototype that actually behaves like the production part, eg load bearing, heat resistance, chemical exposure. Housings, brackets, fixtures, assembly components or anything where material performance is part of what you're validating.
Stratasys FDM systems are commonly used for these applications because they support a wide range of industrial thermoplastics such as ABS, nylon, polycarbonate blends, and high-performance materials like ULTEM™. These materials allow engineers to run meaningful functional testing before committing to production tooling.

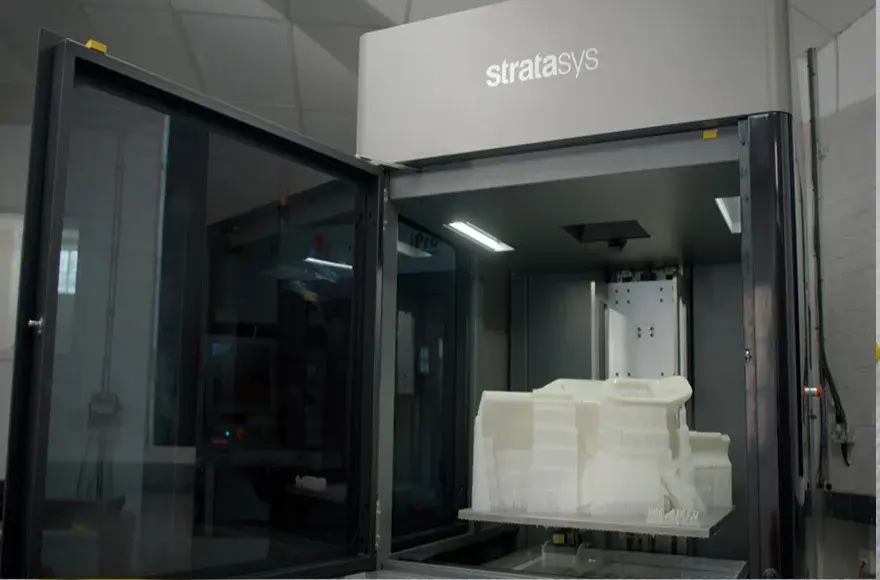

SLA uses a laser to cure liquid photopolymer resin into solid layers, which results in parts with very fine detail and smooth surfaces, so it's particularly useful when surface quality, dimensional accuracy, or small features are important.
SLA is often used for wind-tunnel models, detailed housings, fluid flow testing, and precision design validation.

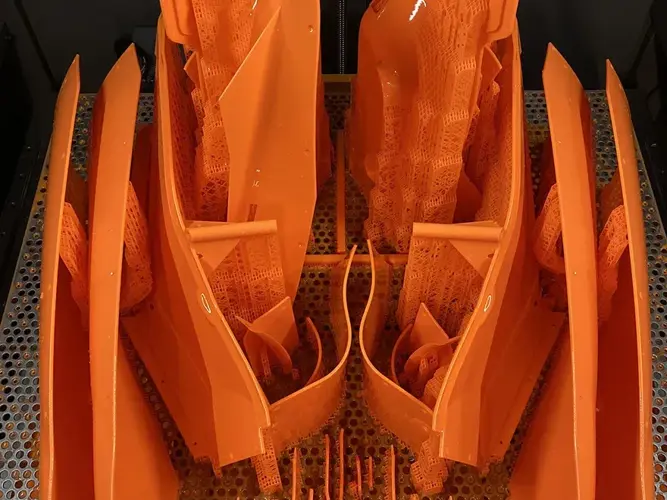

McLaren Racing uses Neo SLA to produce wind-tunnel components where surface smoothness and dimensional accuracy are critical for F1 aerodynamic testing.
SLS uses a laser to fuse nylon powder into solid parts, no support structures needed. That means you can pack a full build with multiple components and produce complex assemblies in a single run that would otherwise take several manufacturing steps.
The material strength and durability make it a good fit for functional prototypes, snap-fit designs, housings, and small assemblies.

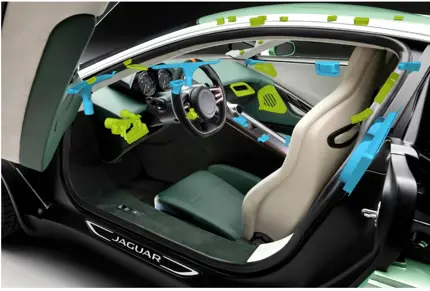

You might also have heard of Multi-Jet Fusion (MJF). Stratasys’ equivalent powder-based process is SAF™ (Selective Absorption Fusion), which produces durable nylon parts with consistent mechanical properties for functional prototyping and batch production.
PolyJet is a type of material jetting technology, a category of additive manufacturing that deposits liquid photopolymer droplets and cures them with UV light. Other material jetting processes, such as MultiJet Printing (MJP), follow a similar principle but are implemented on different platforms.
Stratasys’ PolyJet technology builds parts by jetting liquid photopolymer and curing it with UV light. The process produces very smooth surfaces and fine detail, making it well suited for high-fidelity prototypes.

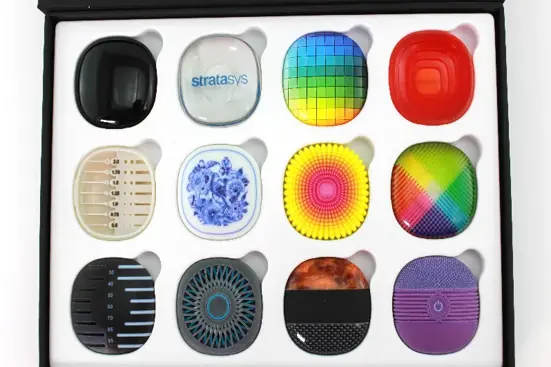

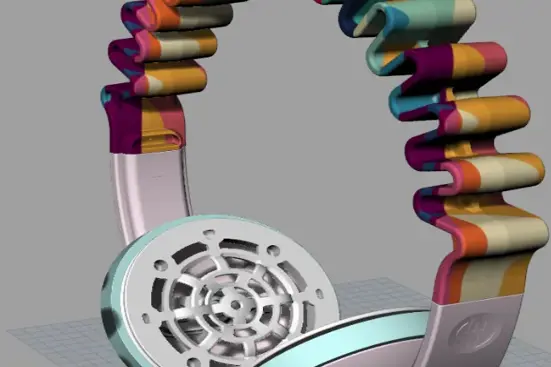

Unlike most additive technologies, PolyJet can combine multiple materials and colors in a single build, allowing teams to evaluate appearance, transparency, soft-touch features, and material transitions early in development.
CNC machining carves material away from a solid block using computer-controlled cutting tools. It's the right choice when your prototype needs to match production material properties exactly, particularly metals. Tolerances are tight and surface finish is good, but setup takes longer and cost per iteration is higher. Most teams use 3D printing for early iterations and bring CNC in later when they need to validate final material behaviour or precision features.

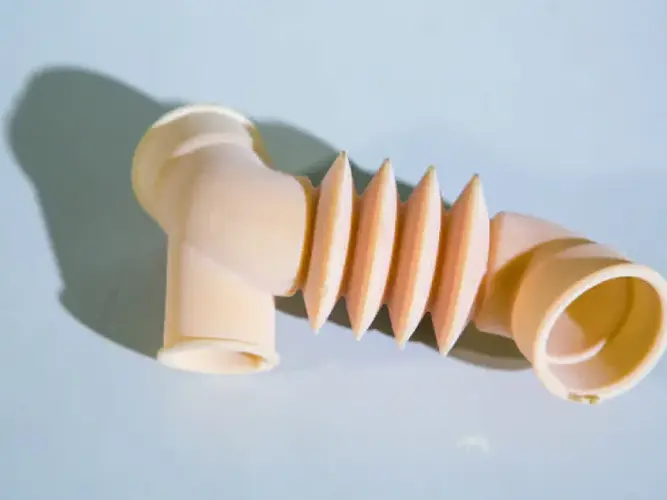

Rapid tooling creates temporary molds far faster than traditional hardened steel tooling, which makes small-batch molded parts possible before committing to full production tooling. It's useful for testing manufacturing readiness, assembly fit, or small production runs. The tradeoff is you're still making tooling, so design changes are slower and more expensive than with additive. Some manufacturers also use 3D printed tooling inserts to produce molded prototype parts before committing to hardened steel molds.
Teams use sheet metal prototyping when the final product will also be manufactured from sheet metal. Processes like laser cutting flat blanks, bending them in to shape, and welding them together can produce accurate prototypes, but design changes often require new tooling or further fabrication. Because of this, many teams use 3D printing earlier in development to test geometry and assemblies, then move to sheet metal once the design is more stable.
Before moving to sheet metal prototypes, teams often use strong engineering plastics such as polycarbonate, nylon, or ULTEM™ that approximate some metal-like stiffness, allowing engineers to evaluate geometry and assembly behavior earlier in development.
Vacuum casting is often used once designs stabilize to produce small batches that mimic injection-molded parts. Because you need a new mold for each design revision, it works best once the design has largely stabilised. Most teams start with 3D printing and move to casting once the design begins to stabilise.
Choosing the right process comes down to matching the method to what you're actually trying to learn from the prototype. Material properties, volume, budget, surface finish, and dimensional tolerances all factor in, and the answers point you toward different technologies like SLA, FDM or CNC machining.
Start with what you need to learn. Early on, that's usually geometry, packaging, or proof-of-concept. You need fast iteration, so 3D printing is the default. Later, when you're validating performance, manufacturability, and assembly fit, most teams bring in traditional methods alongside additive as the design stabilises.
SAF is able to provide interchangeable parts, ensuring that the pins on the two halves of the connector always fit together regardless of where they are printed.
Need the prototype to behave like the production plastic? FDM with engineering thermoplastics (eg. polycarbonate, nylon, ULTEM™) is the practical choice. If you’re evaluating colour, transparency, or soft-touch features, PolyJet gives you the visual and tactile detail you need. If you need exact production material properties, CNC lets you prototype in the actual final material.
Need small quantities fast? Additive is the most efficient option. Go straight from CAD, with minimal setup and multiple variants in one build. As quantities grow, vacuum casting or rapid tooling become more cost-effective without locking you into full production tooling.
Surface finish and tolerances often determine the final process choice.
For fine detail and smooth surfaces, SLA is often used because it can produce very thin layers and accurate small features, making it suitable for visual models and aerodynamic testing.
FDM is typically chosen for functional prototypes where strength and engineering materials matter more than surface finish. Parts are built in visible layers, but the process supports durable thermoplastics such as polycarbonate, nylon, and ULTEM™ for mechanical testing.
When very tight tolerances or exact production materials are required, CNC machining is often used to produce prototypes directly from metal or production-grade plastics.

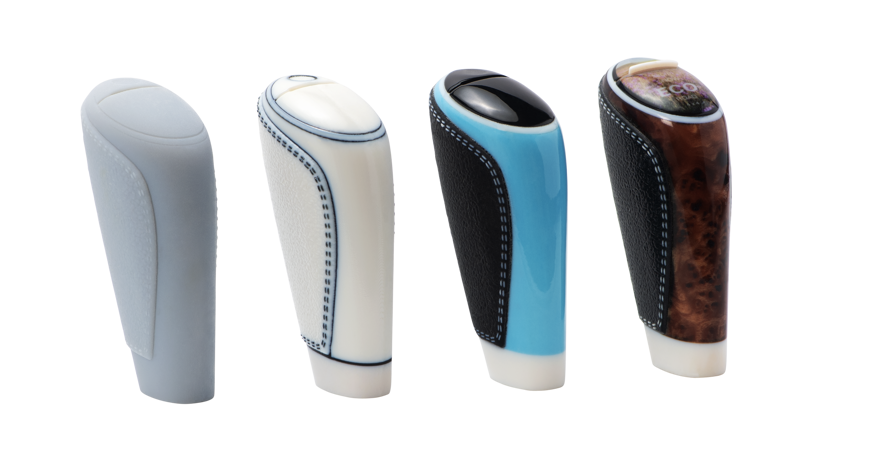

For high-fidelity visual models where colour, texture, and surface detail matter, PolyJet technology can print layers as fine as 16 microns, producing smooth surfaces and detailed features directly from the printer with minimal post-processing.

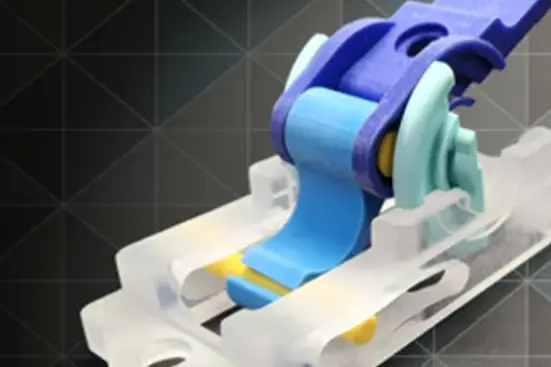

Rapid prototyping applications span across multiple industrial sectors, primarily serving as proof of concept models and functional prototypes for testing. The technology is essential for industrial design and aesthetic models, as well as low-volume specialized production in high-stakes fields like medical, aerospace, and automotive engineering.
Proof-of-concept prototypes answer one question: will this idea actually work? They're used early to validate geometry, packaging constraints, or design direction before significant time or money goes in.

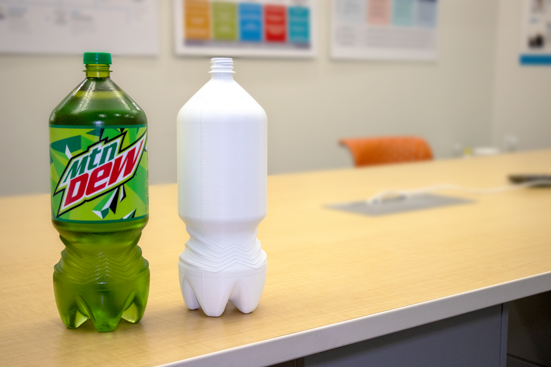

PepsiCo's packaging team is a good example. They print bottle and packaging concepts in-house so designers and engineers can review something physical during development, rather than waiting on an external model shop.

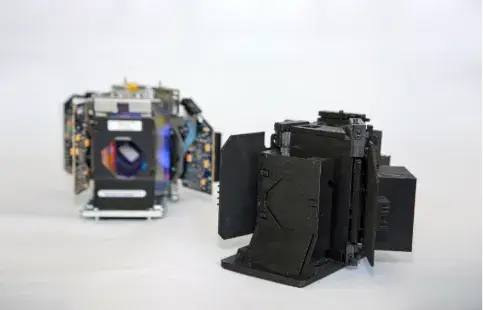

Once you've proved the concept, prototyping moves to functional testing of mechanical performance and assembly fit in real-world conditions.

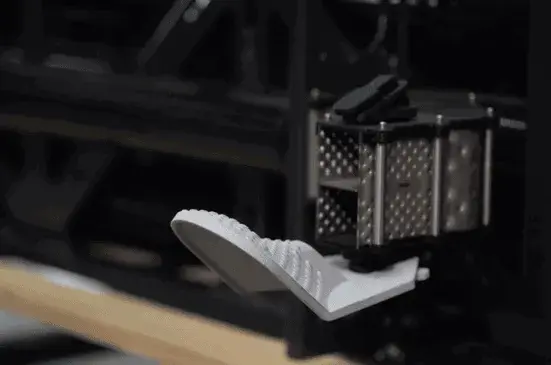

Agricultural equipment manufacturer Rauch uses additive manufacturing3D printing to make functional prototypes in engineering-grade materials, so they can test performance and iterate quickly before committing to traditional manufacturing.

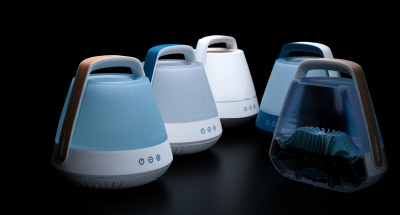

Not every prototype is about mechanical performance. Many are built to evaluate how something looks, feels, and works in someone's hands: colour, surface finish, transparency, and user interaction.
Microsoft engineers used high-fidelity PolyJet prototypes to evaluate product designs and usability during development. Having realistic models allowed teams to review form, ergonomics, and surface details early, before committing to production tooling.

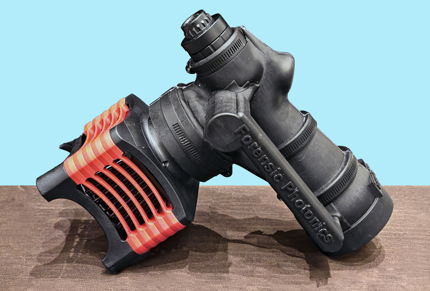

Rapid prototyping can also produce small batches of functional parts for validation builds or specialized applications.

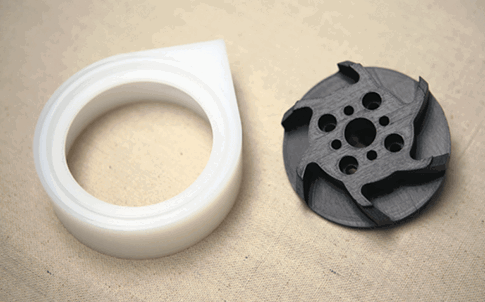

Industrial manufacturer RedDot used FDM printing to generate multiple design variations of a component in a single afternoon, allowing engineers to compare performance and refine the design without waiting for traditional manufacturing.
In medical development, rapid prototyping helps teams evaluate devices, surgical tools, and patient-specific anatomical models before manufacturing begins.
Medical device teams use 3D-printed prototypes to test ergonomics, confirm assembly fit, and review designs directly with clinicians, catching design issues early in the development process.
Aerospace engineers use rapid prototyping to test aerodynamic performance, evaluate lightweight structures, and validate complex assemblies.

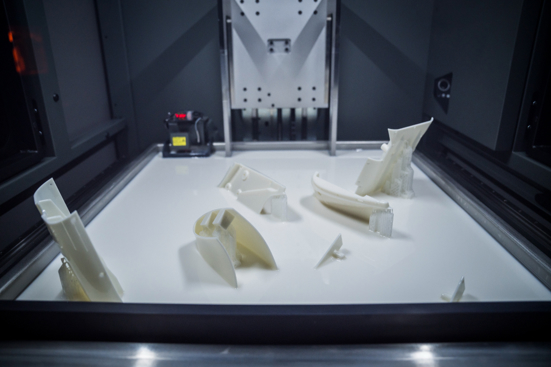

Toyota Gazoo Racing Europe produces high-precision SLA wind-tunnel models, where surface quality and dimensional accuracy directly influence aerodynamic test results.
Automotive manufacturers apply rapid prototyping throughout the development cycle, from early design concepts to manufacturing tooling.

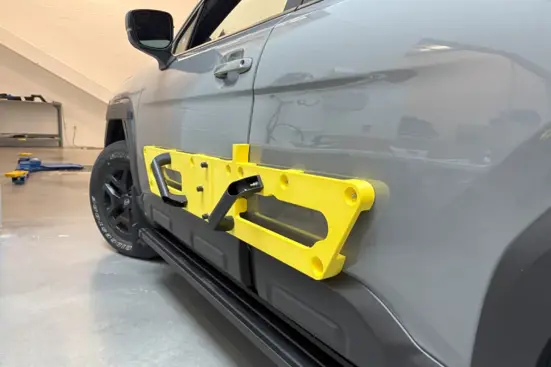

Companies such as Subaru use additive manufacturing to accelerate tooling development, shortening prototype turnaround times and allowing engineers to refine designs before committing to production tooling.
