Fixed-wing unmanned aerial vehicles (UAVs) are increasingly used for defense, aerospace, and commercial applications that require long-range, efficient flight. As mission requirements evolve and production timelines shrink, manufacturers need faster ways to design, test, and manufacture airframes without sacrificing performance.
Industrial additive manufacturing offers a flexible approach. It enables manufacturers to rapidly iterate designs, reduce tooling requirements, and produce lightweight, flight-ready components using engineering-grade thermoplastics. This guide explains how 3D printed fixed-wing drones are designed, manufactured, and validated for production applications
A 3D printed fixed-wing drone is an unmanned aerial vehicle (UAV) with rigid, stationary wings where key structural components, such as the fuselage, wings, and internal supports, are manufactured using additive manufacturing.
These 3D printed fixed-wing drones use aerodynamic lift generated by their wings for efficient forward flight, enabling longer range and endurance compared to multirotor systems. By leveraging industrial 3D printing, manufacturers can produce lightweight, customizable airframes optimized for defense, aerospace, and commercial missions.
Not every component of a fixed-wing UAV needs to be 3D printed. Manufacturers often combine printed thermoplastic structures with composite spars, machined inserts, electronics, and conventional hardware to optimize weight, strength, and manufacturability.

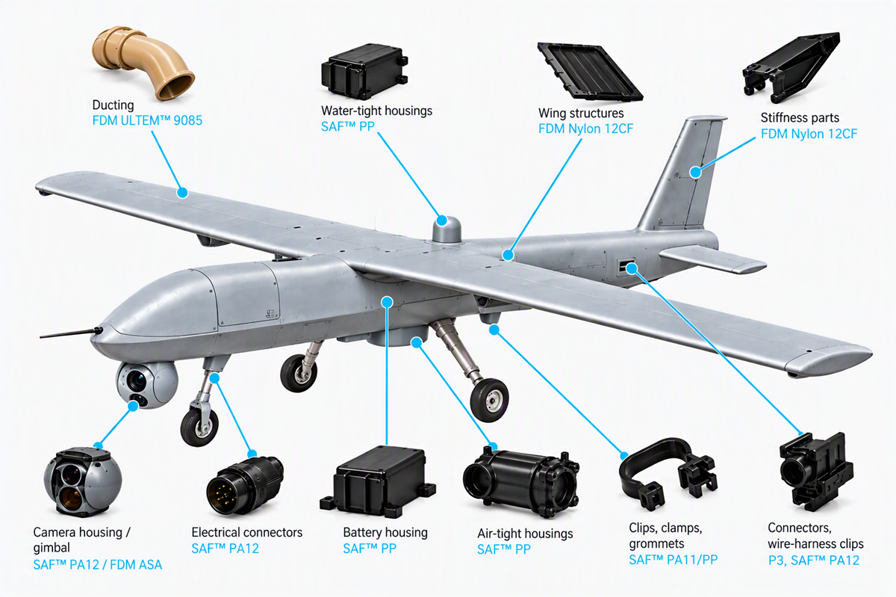

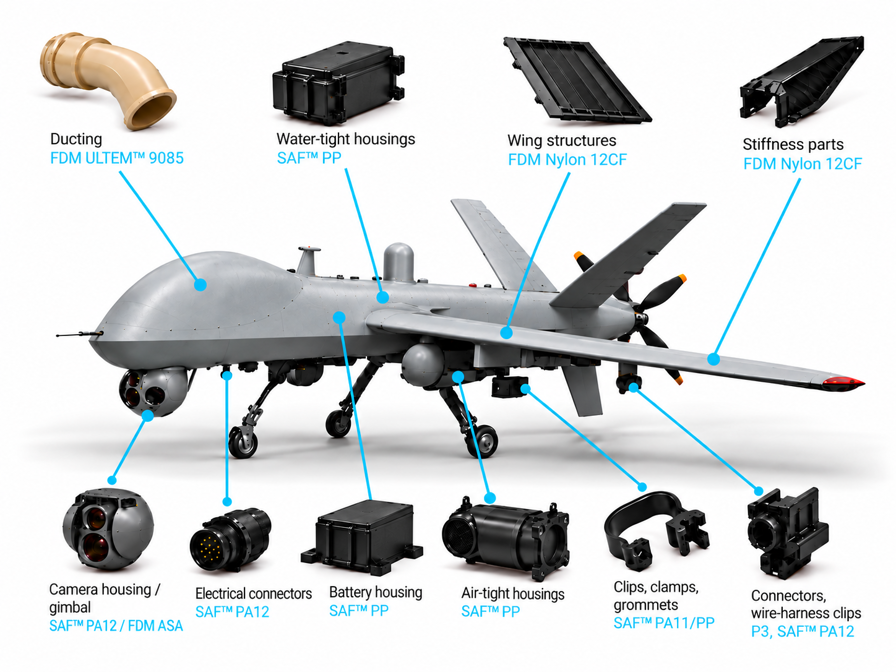

Depending on the application, additive manufacturing can be used to produce:
By applying additive manufacturing where it provides the greatest value, manufacturers can streamline production while maintaining the performance requirements of fixed-wing aircraft.
Unlike traditional manufacturing methods that rely on tooling, molds or dedicated fixtures, industrial 3D printing enables manufacturers to move directly from a digital design to a functional part. This flexibility allows engineering teams to respond more quickly to changing requirements while reducing production risk.
Drone programs rarely remain static throughout development. New payloads, communications systems, batteries, or mission requirements often require changes to the airframe.
With additive manufacturing, engineers can revise a CAD model and produce an updated component without waiting for new tooling. This allows manufacturers to evaluate multiple design concepts, complete functional testing sooner, and shorten development cycles.
For organizations developing defense and aerospace platforms, this faster iteration can significantly reduce time between concept and flight testing. Stratasys and Aurora Flight Sciences demonstrated this firsthand by designing, building, and flying a jet-powered, fixed-wing UAV whose printed components accounted for approximately 80% of the airframe by weight. The project cut aircraft build time in half compared with conventional design and build methods.
Tooling represents one of the largest upfront investments in conventional manufacturing. It also limits flexibility when designs continue to evolve.

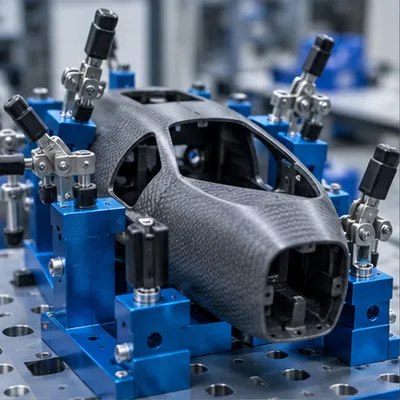

Industrial 3D printing removes much of this constraint by allowing manufacturers to produce prototypes, bridge-production quantities, and many end-use parts directly from digital files. It also enables rapid production of composite layup tools, drill guides, and assembly fixtures that support conventional manufacturing processes.
Rather than simply replacing machined parts with printed parts, additive manufacturing allows engineers to redesign components specifically for lightweight performance.
Internal ribs, lattice structures, and optimized wall thicknesses allow material to be placed only where it contributes to structural performance.
Engineers can also consolidate multiple components into a single printed assembly. Internal wiring channels, cooling ducts, mounting features, and reinforcement structures can all be incorporated into one part, reducing fasteners, simplifying assembly, and lowering overall weight.
Digital manufacturing reduces dependence on long supply chains and dedicated tooling. Rather than maintaining large inventories of replacement parts, manufacturers can store qualified digital files and produce components as needed. This approach can reduce lead times, minimize inventory costs, and improve responsiveness when aircraft configurations change.
Industrial additive manufacturing supports production at multiple stages of a product's lifecycle. Manufacturers can use the same digital workflow for concept models, functional prototypes, tooling, bridge production, and many end-use components. As demand grows, production capacity can increase by adding qualified printers or combining multiple additive technologies within the same manufacturing strategy.
Although both platforms are classified as unmanned aerial vehicles, fixed-wing drones and multirotors are designed for different missions.
Multirotors generate lift through vertically oriented propellers, allowing them to hover, take off vertically, and maneuver in confined spaces.

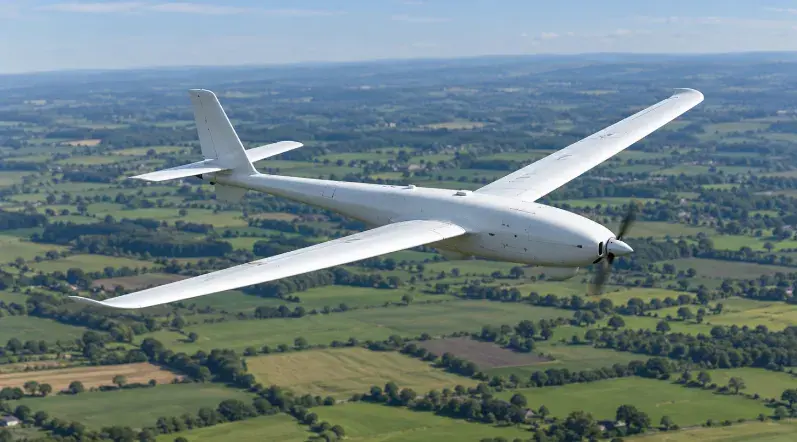

Fixed-wing drones generate lift through airflow over their wings, making them significantly more energy efficient during forward flight. This enables longer flight times, greater range, and larger coverage areas.
As a result, fixed-wing UAVs are commonly used for:
These aircraft also experience different structural loads. Wings must resist bending and torsion. Wing roots transfer significant forces into the fuselage, and landing loads must be distributed throughout the airframe. These requirements influence everything from material selection and print orientation to internal reinforcement and assembly methods.
Industrial 3D printing is not intended to replace every manufacturing process. Instead, it provides the greatest value when flexibility, speed, and design complexity outweigh the economics of traditional tooling.
Additive manufacturing is often the right choice when:
For high-volume production of simple components, conventional manufacturing methods may still offer the lowest cost per part. Many successful UAV manufacturers combine additive manufacturing with machining, composites, and molding to create the most efficient production workflow.

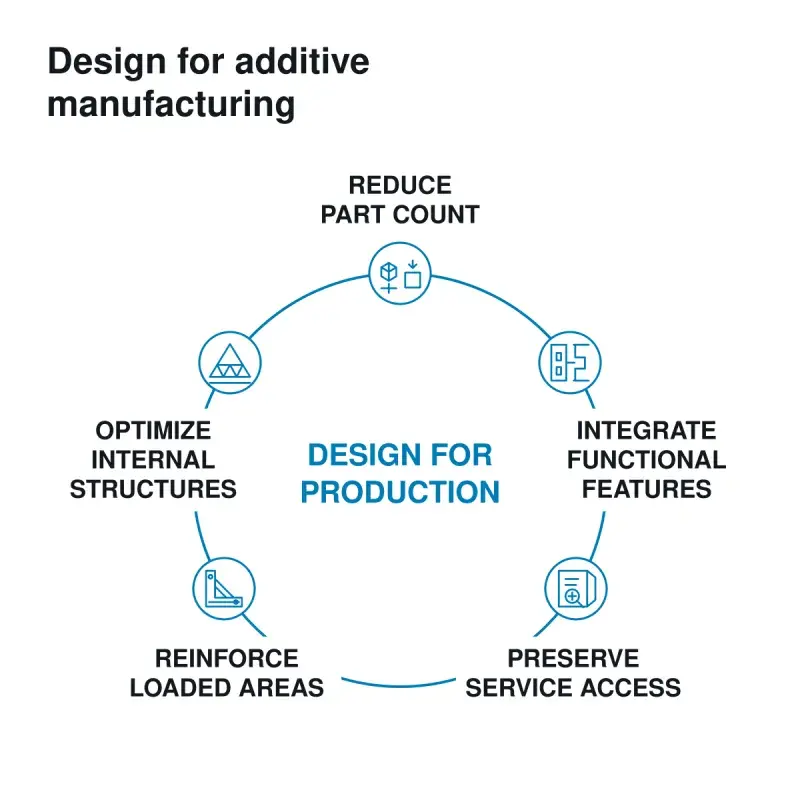

Design for additive manufacturing (DfAM) helps engineers fully leverage the capabilities of industrial 3D printing rather than simply reproducing conventionally manufactured parts.

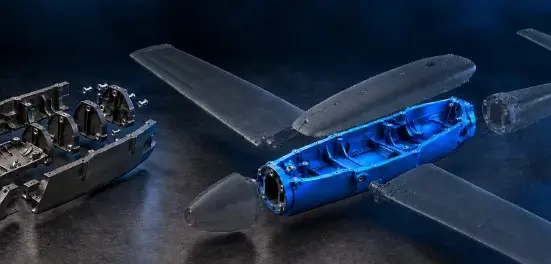

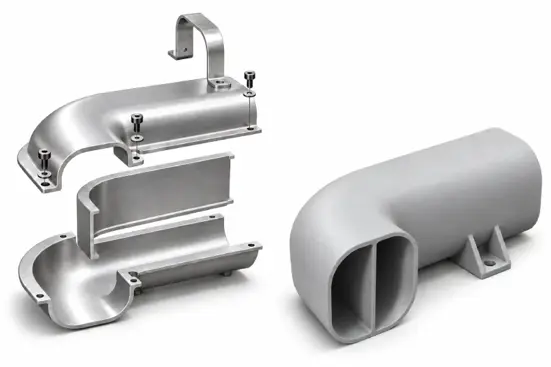

Additive manufacturing makes it possible to combine brackets, ducts, mounting features, and structural supports into fewer printed components.
Reducing part count simplifies assembly, lowers inventory requirements, and minimizes potential failure points created by fasteners and joints.
Unlike conventional manufacturing, additive manufacturing allows engineers to create internal geometries that would otherwise be impossible to machine. Lattice structures, internal ribs, and optimized wall thicknesses improve stiffness while minimizing unnecessary weight.
Designers can integrate features such as:
Building these features directly into the airframe reduces secondary assembly operations and simplifies manufacturing.
Not every portion of the aircraft experiences the same loading. Wing roots, landing gear interfaces, propulsion mounts, and payload attachment points often require additional reinforcement. Engineers can strategically increase wall thickness, add ribs, or incorporate composite or metal inserts where additional strength is needed.
Part consolidation should never come at the expense of serviceability. Components that require routine inspection or replacement should remain accessible. Engineers should balance manufacturing efficiency with long-term maintenance requirements throughout the design process.
Selecting the right material depends on structural requirements, operating environment, temperature, weight targets, and qualification needs.
|
Material |
Main reason to consider it |
Example applications |
|
FDM |
Strength-to-weight, heat resistance, and flame, smoke, and toxicity performance. |
Lightweight brackets, ducts, and housings. |
|
FDM |
Toughness, wear resistance, and fatigue resistance. |
Clips, connectors, and snap-fit housings. |
|
FDM |
High stiffness-to-weight for rigid components. |
Rigid brackets, supports, and assembly fixtures. |
|
FDM |
Impact strength and heat resistance. |
Rugged housings, functional prototypes, and tooling. |
|
FDM |
General-purpose functional prototyping and tooling. |
Fit-check parts, jigs, and assembly fixtures. |
|
FDM |
UV resistance for outdoor exposure. |
Exterior covers, sensor housings, and airframe prototypes. |
|

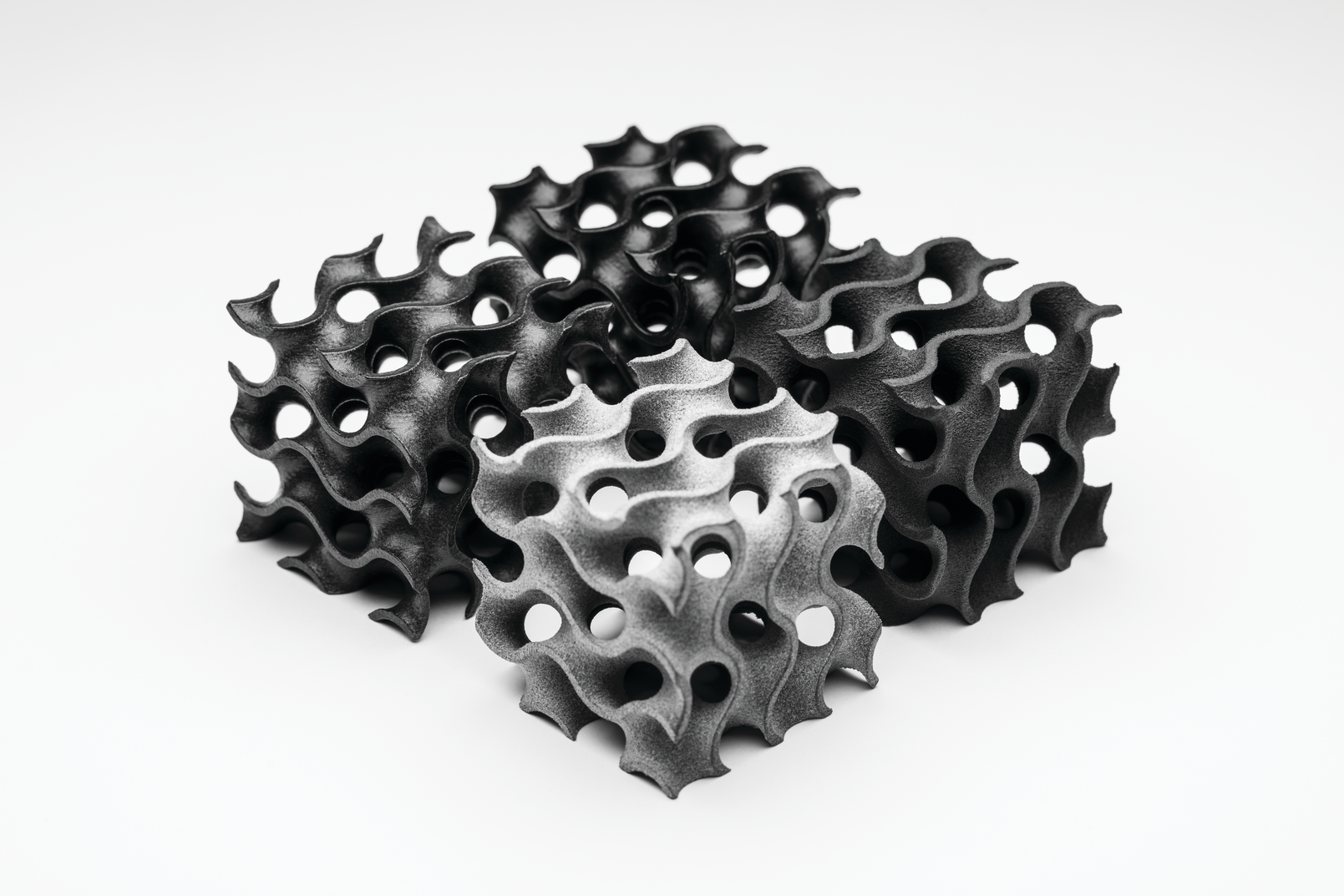

SAF |
Ductility and impact resistance. |
Clips, snap-fit parts, and protective housings. |
|
SAF |
Greater stiffness than PA11 where rigidity is a priority. |
Rigid housings, covers, and brackets. |
These examples are starting points for material selection. Validate the material, print process, and finished component against the application’s loads, operating environment, and qualification requirements.
Manufacturing flight-ready components successfully combines material selection, process control, post-processing, and inspection.
Different additive technologies support different UAV applications. Industrial FDM is commonly used for large structural thermoplastic components, tooling and flight parts.
SAF® technology supports higher-volume nylon production, while stereolithography (SLA) is often selected for aerodynamic prototypes and wind tunnel models. Bifrost, a manufacturing provider producing UAV components, adopted SAF technology and reported 6-8 times the throughput of its previous SLS process, along with up to 80% lower post-processing labor.
Before printing, engineers optimize:
Careful preparation improves dimensional accuracy while reducing post-processing requirements.
Print orientation directly affects:
Structural components should be oriented to maximize strength along primary load paths while balancing production efficiency.
When aircraft exceed a printer's build volume, engineers can divide the design into modular assemblies with alignment features, bonded joints, or integrated spars. This allows manufacturers to produce large wings and fuselage sections while maintaining structural integrity.
Following printing, components may undergo:
These finishing operations improve aerodynamics, environmental resistance, and overall fit and finish.
Producing a successful print is only one step toward a flight-ready aircraft. Components must also be validated for their intended operating environment.
Manufacturers commonly evaluate:
Testing should address material properties, individual components, and complete assemblies as appropriate to the application and its failure risks.
Production-grade additive manufacturing requires consistent processes and repeatable results. Inspection programs may include dimensional verification, build records, material traceability, visual inspection, and first-article inspection.
Depending on the application, manufacturers may evaluate resistance to:
Validation requirements vary depending on whether the aircraft is intended for commercial, aerospace, or defense applications.
Yes, appropriately designed and validated 3D printed components can meet the performance requirements of fixed-wing UAV applications. Suitability depends on the component, material, manufacturing process, and operating conditions.
It’s clear, industrial additive manufacturing has advanced well beyond rapid prototyping. Today, manufacturers use it to produce tooling, flight components and end-use production parts across aerospace and defense applications.
For many fixed-wing UAV manufacturers, additive manufacturing offers advantages that extend beyond the individual component. It enables faster design changes, reduced tooling investment, lightweight structures, digital inventories, on-demand sustainment and more responsive production strategies.
As mission requirements evolve, industrial additive manufacturing provides manufacturers with a flexible path from concept through production, allowing them to design, build, and scale 3D printed fixed-wing drones with greater speed, efficiency, and confidence.
The strongest manufacturing approach often combines printed components with composites, machined parts, and conventional hardware. Evaluate additive manufacturing against the required performance, production rate, and total manufacturing cost, including finishing, inspection, and assembly.
