Attributes

Proven silicone performance and behavior due to its silicon-oxygen backbone. Ask for the aging test results!

  • check

    Proven stable thermal aging, also after 1,000 hours heat exposure at 150°C (300°F)

  • check

    Elongation at break of 672%

  • check

    Tear strength of approximately 16 kN/m

  • check

    Low compression set of 6%

  • check

    Rated UL 94 V-0 flammability rating at 3 mm and 6 mm thicknesses

  • check

    Passed ISO 10993-5 cytotoxicity testing

Applications

Balancing stretch and dimensional recovery, for flexible applications that require high printing accuracy combined with properties equivalent to injection-molded silicone.

  • check

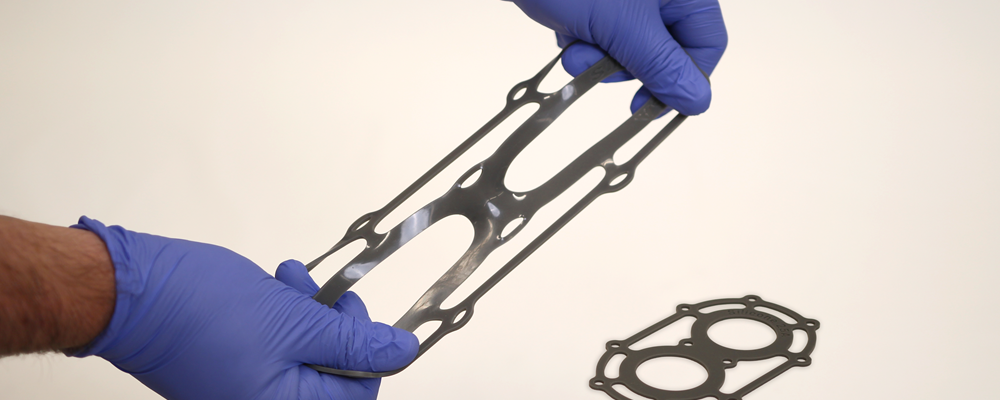

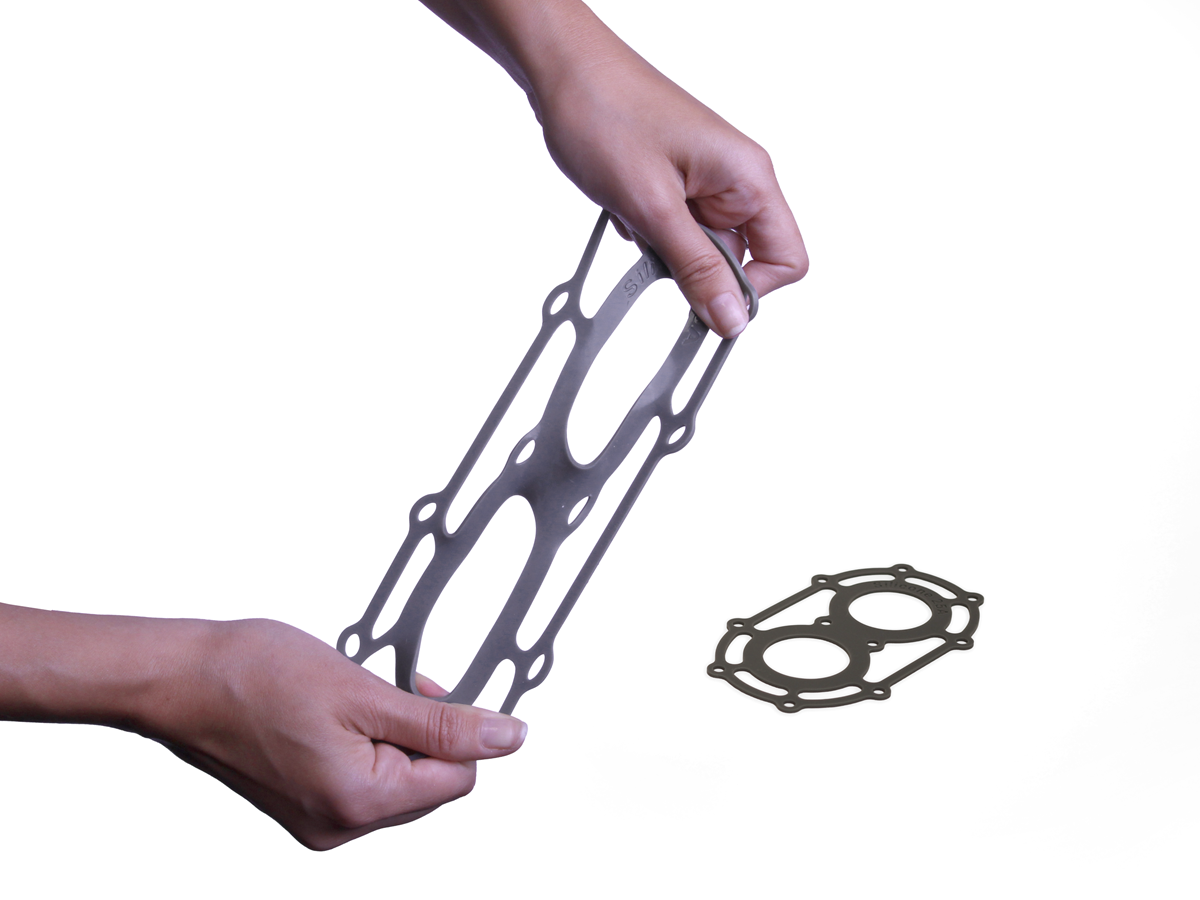

    Seals & Gaskets

  • check

    Industrial machinery components

  • check

    Vibration cushioning

  • check

    End-of-arm-tooling soft grippers

Q9MxXG3uaYfTT6U4Zjrk9H

It ages like silicone.

Silicones are specified for components that must maintain elasticity, sealing force, and durability through repeated compression, vibration, and environmental exposure. Thermal aging however, can change the mechanical properties of silicone and other elastomers, directly affecting their functional performance and potential service life.

Aging tests show that after 1,000 hours at 150°C (300°F), P3™ Silicone 25A retained substantially more of its original mechanical properties than the alternative commercially available 3D printing silicone tested:

  • Hardness: 22A → 27A for P3™ Silicone 25A, compared with 42A → 72A for the alternative.
  • Elongation at break: 672% → 376%, compared with 192% → 19%.
  • Tensile strength: 5.8 → 5.1 MPa, a 12% decrease, compared with 6.4 → 1.9 MPa, a 70% decrease.
  • Tear strength: 18 → 15 kN/m, a 17% decrease, compared with 19 → 0 kN/m.

What Users Are Saying

“The material is like nothing we have seen before in 3D printing. The process of getting to a successful print was much easier than expected."

Industries

With the characteristic performance and behavior of silicones, P3 Silicone 25A is engineered for applications requiring high tear strength, elongation, chemical resilience, and long-lasting mechanical properties over a wide temperature range.

Stratasys Automotive Icon

Automotive

Stratasys Manufacturing Icon

Industrial

Consumer Goods

Consumer

Aerospace

Aerospace

Compatible Printers

All P3 Printers

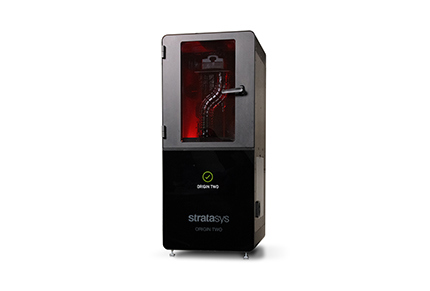

Origin Two

Origin® Two P3 DLP Printer

Injection molding like accuracy, repeatability and surface finish, for economic viable short production runs

origin one 3d printer

Origin One

P3 DLP printer featuring a broad range of performance materials, for end-use parts

Origin Two

Origin® Two P3 DLP Printer

Injection molding like accuracy, repeatability and surface finish, for economic viable short production runs

origin one 3d printer

Origin One

P3 DLP printer featuring a broad range of performance materials, for end-use parts
