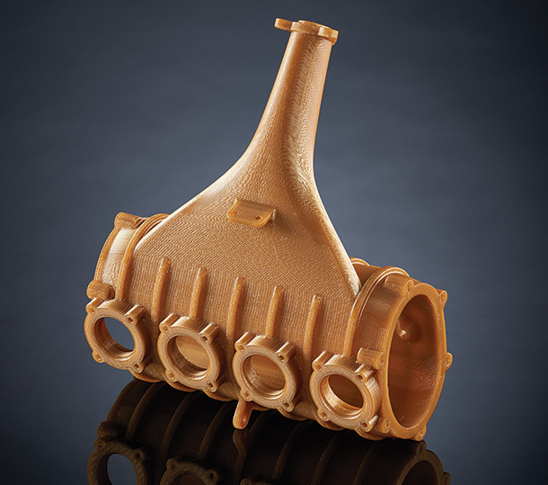

This functional prototype of an automotive intake manifold demonstrates ULTEM™ 1010 resin’s rugged capabilities: the highest heat resistance, chemical resistance and tensile strength of any FDM® material. ULTEM™ 1010 resin combines excellent strength with thermal stability for advanced tooling, biocompatibility and food-contact certification.

ULTEM™ 1010 resin

FDM PEI Thermoplastic
High Strength and Excellent Thermal Properties.

ULTEM™ 1010 resin is a high-performance polyetherimide (PEI) thermoplastic, strong 3d printing material. It has high heat resistance while exhibiting the lowest coefficient of thermal expansion among FDM materials. Combined with high strength properties, ULTEM 1010 resin is the strongest FDM material and is perfect for demanding and specialized applications like lightweight composite tooling.

Certified Grade for Specialty Applications.

For special medical and food-related applications, ULTEM™ 1010 CG (certified grade) comes with additional documentation to demonstrate compliance with industry standards for ISO 10993 and USP Class VI biocompatibility, and NSF 51 food safety requirements.

Typical applications

Prototyping icon

Prototyping

Functional prototypes for demanding applications.

icon Tooling

Tooling

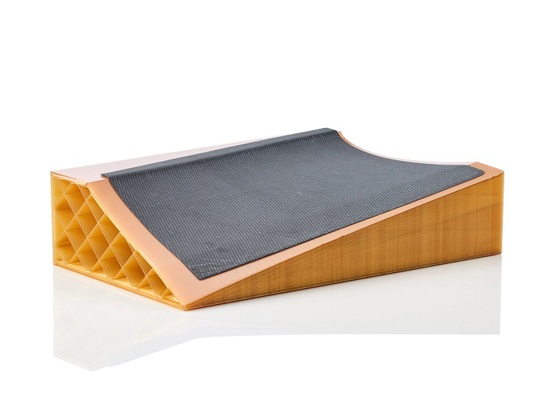

High-strength jigs, fixtures and composite tooling.

Gears icon

Production Parts

Low-volume production and highly customized parts.

Performance properties

Tensile

Ultimate Tensile Strength*

ULTEM 1010 : 81MPa
Nylon 12CF : 76MPa
ULTEM 9085 : 69MPa
PC : 57MPa

HDT

Heat Deflection Temperature*

ULTEM 1010 : 216°C
ULTEM 9085 : 153°C
Nylon 12CF : 143°C
PC : 138°C

gSx5ErKDngUoraL1yeHBRa

Compatible printers

fortus_450mc

Fortus 450mc

Leverage the versatility of being able to print using multiple FDM materials with the Fortus 450mc printer.

Learn More
f900

F900

For big parts, large print jobs or a combination of both, rely on the F900, compatible with most Stratasys FDM thermoplastics.

Learn More

Downloads

ULTEM™ 1010 Product Datasheet

Download

ULTEM™ 1010 Safety Datasheet

Continue to Safety Datasheet

ULTEM™ 1010 Material Testing procedure

Download
