ABS-M30i

FDM Thermoplastic

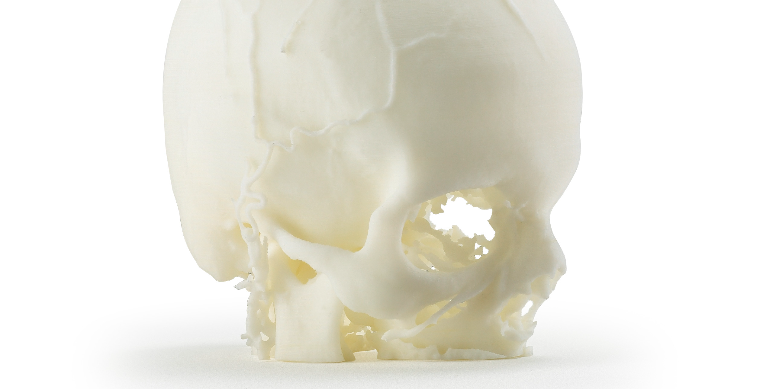

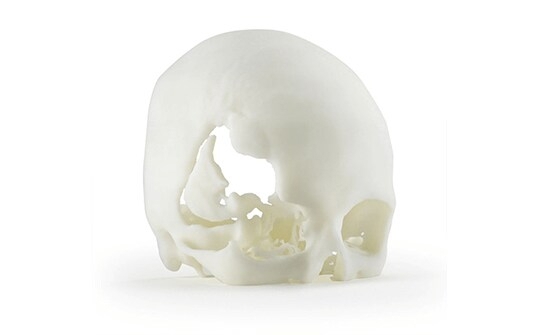

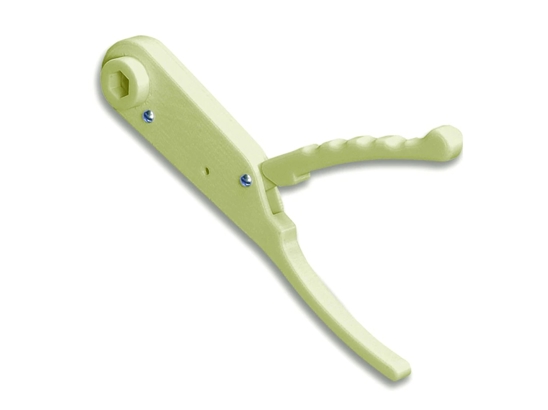

ABS-M30i is a biocompatible 3D printing material perfectly suited for medical, pharmaceutical and food-packaging engineers and designers to produce surgical planning models, medical devices, tools and fixtures.

High Strength, Sterilizable FDM Material

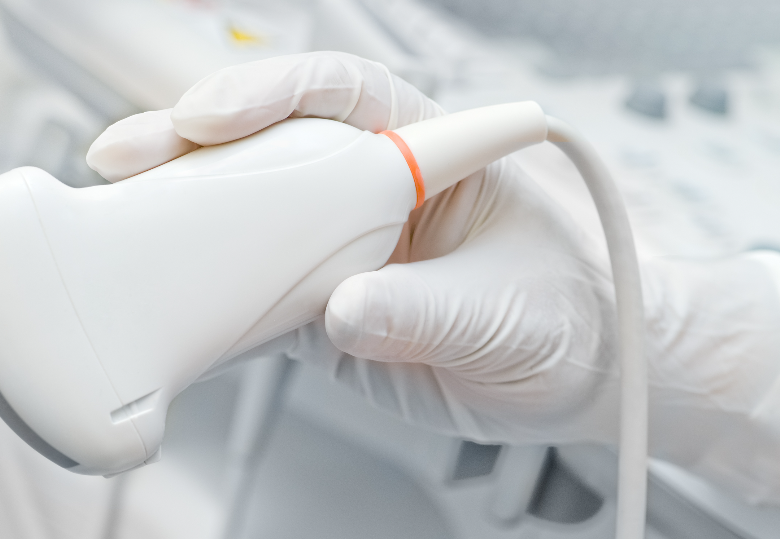

ABS-M30i is a strong, biocompatible material capable of sterilization and suitable for use in medical devices. It complies with the test requirements of ISO 10993 (biological evaluation of medical devices), USP Class VI (plastic biocompatibility) and ISO 18562 (biocompatibility of breathing gas pathways in applications such as ventilators, breathing tubes, resuscitators and other airway-related devices). Test results for ISO 18562 are available from the link below.

Performance properties

Tensile

TENSILE STRENGTH

31 MPa (XZ Axis), 26 MPa (ZX Axis)

flexural modulus

TENSILE MODULUS

2,180 MPa

HDT

HDT @ 66 PSI

96 °C

izod impact

IMPACT TOUGHNESS

IZOD Impact, notched - 2.4 ft-lb/n (XZ Axis), 128 J/m (ZX Axis)

Downloads

ABS-M30i product data sheet

Download

ABS-M30i safety data sheet

Continue to safety data sheet

ISO 18562 verification of ABS-M30i with specific geometry

Download
