VICTREX AM™ 200 PEEK

PEEK Based Copolymer
Easier printing than the typical PEEK, VICTREX AM™ 200 is based on LMPAEK™ technology and is part of the PEEK family in the PAEK polymer group. Designed specifically for additive manufacturing, VICTREX AM™ 200 offers the benefits of a polyaryletherketone (PAEK) material while addressing challenges associated during 3D printing this group of polymers that includes PEEK and PEKK.

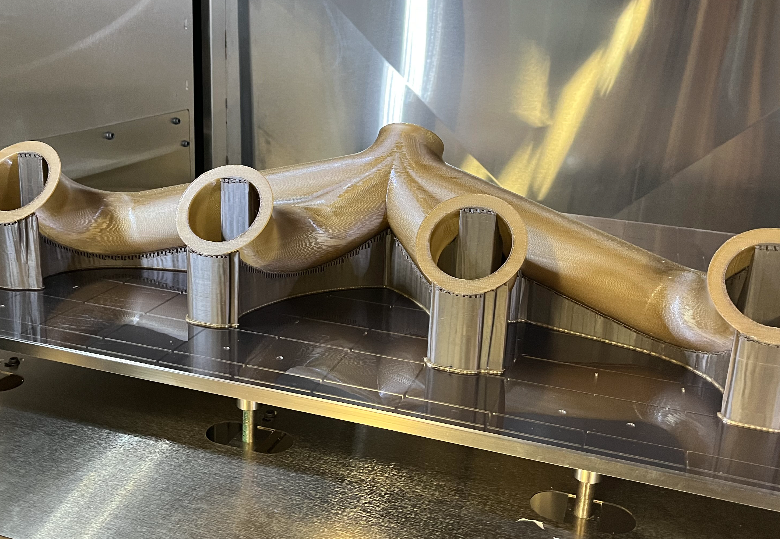

Aircraft air duct 3D printed with Victrex AM 200 LMPAEK PEEK-like material.

3D Printed Part | VICTREX AM™ 200

Benefits of

VICTREX AM™ 200 PEEK

It has the performance approaching that of crystalline PEEK with the printability approaching that of amorphous PEKK.  The characteristics of VICTREX AM™ 200 increase its printability, allowing it to be processed more easily than other PEEK and PEKK materials. These include lower melt temperature and an optimized recrystallization profile which reduces internal stresses and warping. This also allows more time for bonding between layers and a stronger tensile strength in the Z axis than other PEEK polymers processed in similar conditions.

A VICTREX AM™ 200 printing profile also allows the use of soluble support with a high-performance polymer for the first time.





Superior Part Performence

VICTREX AM™ 200 FDM material is part of the Stratasys Validated Material portfolio and combines the benefits of a high-performance polymer with the design freedom of FDM additive technology. 3D printing applications that require high chemical resistance, exposure to temperature extremes, resistance to wear, recyclability and superior mechanical strength will benefit from VICTREX AM™ 200.

udLwA6VQwHDK5hce8XSSQD

Our experts explain VICTREX AM™ 200 PAEK

FDM Validated Material

Our experts explain VICTREX AM™ 200 PAEK

Typical Application Use

Production Parts Icon - Stratasys

Production Parts

Out-of-production, low-volume, and customized production part applications.



Tooling Icon - Stratasys

Tooling

High-requirement jigs, fixtures and other manufacturing aids.

Material Performance Properties

Tensile

Tensile Yield Strength (XZ Orientation)

  • 63.7 MPa (9250 psi)

flexural modulus

Flexural Modulus (XZ Orientation)

  • 2.25 GPa (327 ksi)

Compatible 3D Printers

Fortus 450mc updated

Fortus 450mc FDM 3D Printer

Leverage the versatility of being able to 3D print using multiple FDM materials with the Fortus 450mc 3D printer.

Fortus 450mc - FDM 3D Printer

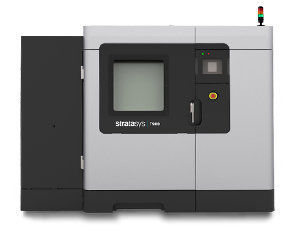

f900 3d printer

F900

For big parts, large print jobs or a combination of both, rely on the F900, compatible with most Stratasys FDM thermoplastics

F900 - FDM 3D Printer

Reference Documents

VICTREX AM™ 200 Material Datasheet

Download Datasheet

VICTREX AM™ 200 Safety Datasheet

Continue to Safety Datasheets
