3D Printing for Drones

  Polymer 3D printing enables faster design iteration, reduced lead times (up to 70% faster), lighter parts through lattice structures and topology optimization, and on-demand production of complex, custom UAV components without the overhead cost of production tooling.

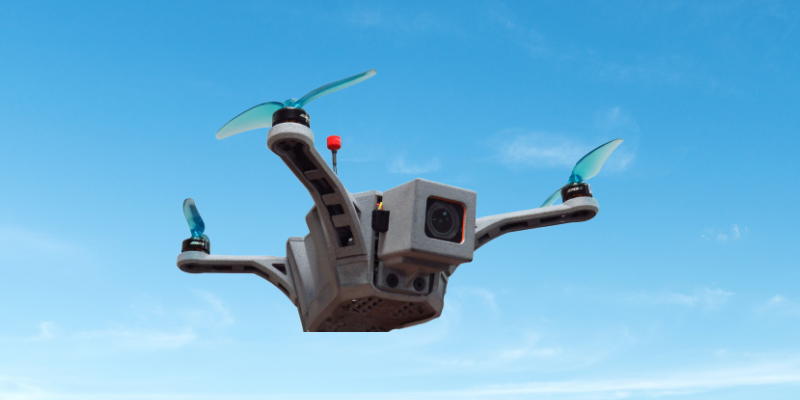

  Structural components like airframes, wings, motor mounts, and landing gear; functional elements such as propeller guards and gimbal mounts; and protective enclosures including battery bays and sensor housings are well suited for 3D printing with aerospace-grade polymers.

  The materials used to 3D print UAV parts vary depending on the function and design specifications of the part. Common materials include a range polymers that include engineering-grade thermoplastics like ASA and nylon, to high-performance plastics such as ULTEM™ (PEI), Antero (PEKK), and carbon fiber-reinforced nylon.

  The ability to create optimized internal lattice structures and consolidate multiple parts significantly reduces weight while providing sufficient strength, which translates to longer flight range, increased payload capacity, and extended mission duration.

  Yes, printed parts using aerospace-grade polymers offer heat resistance, chemical durability, mechanical strength, and in some cases, impact absorption, making them suitable for a variety of UAV mission environments from deserts to maritime conditions.

  Each 3D printing technology is capable of producing UAV parts of very high functional quality that will meet a manufacturer’s specifications. However, from an aesthetic or surface finish point of view, each technology exhibits its unique strengths and limitations. FDM and SAF technologies result in parts with a more textured finish. SLA, P3, and PolyJet technologies produce parts with a much smoother surface appearance.

  For low-to-mid volume runs and prototyping, 3D printing reduces or eliminates upfront tooling costs and waste material compared to CNC machining or injection molding.This makes it economically favorable, especially for customized or small batch UAV parts.

  Parts can be designed, printed, and tested within hours or days, depending on size and complexity, significantly accelerating development cycles and enabling rapid iteration based on flight testing and performance feedback.

  Yes, portable and deployed 3D printers allow operators to produce replacement parts such as propellers, mounts, and covers on-site, minimizing downtime and reducing dependency on centralized supply chains.

  Important design practices include consolidating multi-part assemblies to reduce weight and leak paths, using ribbing and lattice structures in lieu of solid construction for stiffness, orienting FDM filament construction along load paths, adding drain/vent features for ground and maritime vehicles, and validating designs with vibration and thermal testing.
