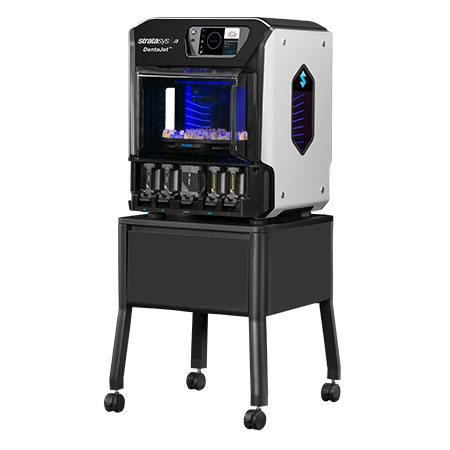

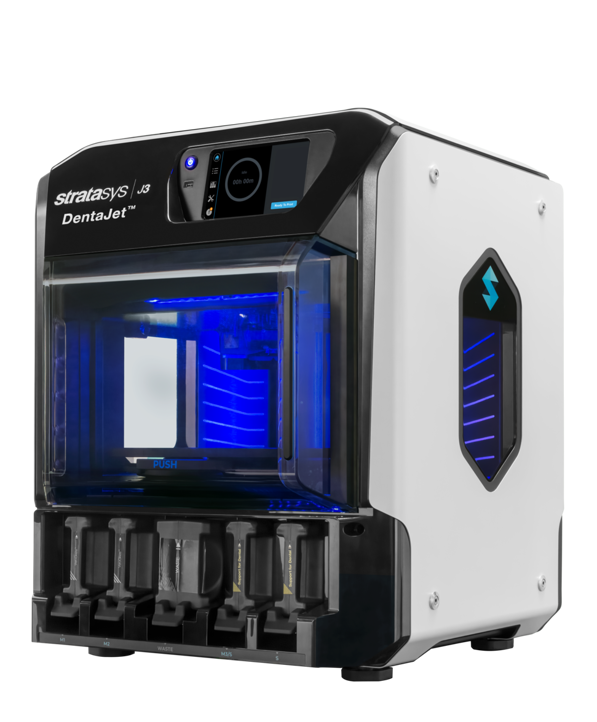

J3 DentaJet 3D Printer®

Quality made compact.

The J3 DentaJet is our entry-level PolyJet 3D printer. The J3 can produce mixed trays of three materials, including a large quantity of implant models, surgical guides, and gingiva masks, all on the same tray and with unmatched precision.
Deliver on a wide array of cases with speed and efficiency while maintaining high accuracy and quality, plus leverage GrabCAD print to streamline production.
The J3 DentaJet offers a small footprint with a large print tray to create more parts with fewer changeovers reducinge manual labor while maximizing output.

Navigate quickly to

J3 DentaJet 3D Printer

Benefits
features-benefits_1058X611

With the J3 DentaJet, labs can produce mixed trays of dental parts with unmatched accuracy.

  • check Scale production and deliver on a wide array of cases with speed and efficiency maintaining high accuracy and quality.
  • check Produce large volumes of fully cured parts overnight to optimize resources and increase efficiency.
  • check GrabCAD print software is easy to use, streamlining the digital workflow with automatic tray arrangement and remote printing.
  • check With fine layer thickness and uniform support generation of PolyJet printing, dental models are printed with consistent accuracy.
Download the Brochure
Features
features-benefits_1058X611

Accuracy and quality made compact.

  • check Multi-material capabilities enable labs to print up to 3 different resins in a single job, producing biocompatible mixed trays.
  • check With GrabCAD, labs can streamline production by managing multiple Stratasys printers and individual print jobs in one smart workflow.
  • check PolyJet 3D printing technology produces highly detailed, accurate parts with fine resolution and minimal post-processing.
  • check Create a large quantity of implant models, surgical guides, and gingiva masks on the same tray.
Download the Brochure
PolyJet Technology

Materials

All Materials

Stratasys developed a unique portfolio of dental resins that deliver a significant value for each application, printing at production speed while maintaining high accuracy. Different resins can be printed simultaneously and are fully cured during the print cycle.

ortho - Copy

Biocompatible VeroGlaze™ MED620™

Rigid, opaque dental resin with high dimensional stability and accuracy. Developed for printing models, as well as custom impression trays and try-ins.

Learn More
implant-surgical-guide

Biocompatible Clear MED610™​

Transparent rigid biocompatible dental resin featuring high dimensional stability. Intended for printing surgical guides and removal partial denture casting patterns.​

Learn More
dibs_idb_white_background

Flexible Clear Biocompatible MED625FLX™

Flexible transparent biocompatible dental resin intended for printing orthodontic independent bonding trays and implant gingival masks. ​

Learn More
ortho - Copy

Rigid, opaque dental resin with high dimensional stability and accuracy. Developed for printing models, as well as custom impression trays and try-ins.

Learn More
implant-surgical-guide

Transparent rigid biocompatible dental resin featuring high dimensional stability. Intended for printing surgical guides and removal partial denture casting patterns.​

Learn More
dibs_idb_white_background

Flexible transparent biocompatible dental resin intended for printing orthodontic independent bonding trays and implant gingival masks. ​

Learn More
All Materials

High Efficiency, Low Touch Workflow

Explore the Workflow
step-1-multi-material-1-click-nest-2-min-task-time

STEP 1: 1-CLICK NEST

Automated nesting & support placement

step-2-multi-material-print-and-cure-1-min-task-time

STEP 2: PRINT & CURE

Unattended printing, parts are fully cured upon completion

step-3-multi-material-auto-wash-1-min-task-time

STEP 3: AUTO WASH

Water-based support removal – no IPA, no additional curing

step-1-multi-material-1-click-nest-2-min-task-time
View more
step-2-multi-material-print-and-cure-1-min-task-time
View more
step-3-multi-material-auto-wash-1-min-task-time
View more
Explore the Workflow

Typical Applications

Produce accurate implant, orthodontic, and removable models and related applications. The J3 DentaJet empowers you to deliver on a wide array of cases with speed and efficiency.

J3 Dental Models

Dental Models

Precise rigid opaque biocompatible models and dies, featuring sharp contacts and margins.

surgical guides

Surgical Guides

Consistently accurate clear surgical guides and stackable guides supporting all types of implant placement.

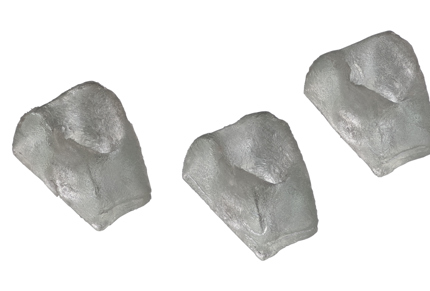

Gingiva mask

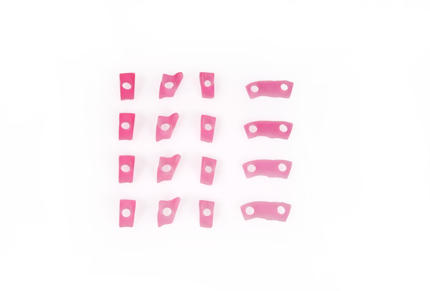

Gingiva Masks

Soft flexible gingiva masks to be used with dental implant models.

dibs_idb_white_background

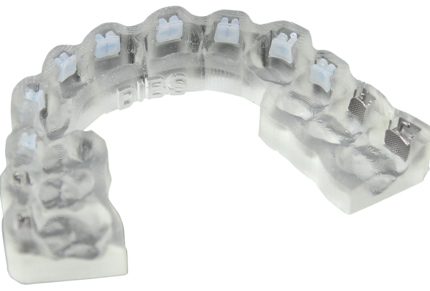

Indirect Bonding Trays

Enabling placement of orthodontic brackets all at once saving chair time

J3 Dental Models

Precise rigid opaque biocompatible models and dies, featuring sharp contacts and margins.

View more
surgical guides

Consistently accurate clear surgical guides and stackable guides supporting all types of implant placement.

View more
Gingiva mask

Soft flexible gingiva masks to be used with dental implant models.

View more
dibs_idb_white_background

Enabling placement of orthodontic brackets all at once saving chair time

View more

Printer Comparison

The DentaJet series includes professional-grade multi-material 3D printers that are designed to address the evolving production needs of every dental lab.

  • Description
  • Support Materials
  • Build Size
  • Layer Thickness
  • Network Connectivity
  • System Size and Weight
  • Operating Conditions
  • Power Requirements
  • Regulatory Compliance
  • Software
  • Build Modes
  • Brochure
J3 DentaJet®

J3 DentaJet®

  • Description The Stratasys J3 DentaJet is a compact, entry‑level PolyJet 3D printer designed for small to mid‑sized dental labs that need high accuracy, multi‑material capability, and efficient production in a small footprint. It enables labs to print mixed trays of dental applications, including implant models, surgical guides, and gingiva masks, in a single job, delivering consistent quality with minimal post‑processing.
  • Support Materials SUP711™ (Waterjet removable)
  • Build Size 140 x 200 x 190mm (5.51 x 7.87 x 7.48 in.)
    Up to 1.174 cm2
  • Layer Thickness Horizontal build layers down to 18 microns (0.0007 in.)
  • Network Connectivity LAN – TCP/IP
  • System Size and Weight 651 x 661 x 774mm (25.63 x 26.02 x 30.48 in.); 98 kg (216 lbs.)
  • Operating Conditions Temperature 18 – 25 °C (64 – 77 °F); relative humidity 30 – 70% (non-condensing)
  • Power Requirements 100 – 240 VAC, 50 – 60 HZ, 10A, 1 phase
  • Regulatory Compliance CE, FCC, EAC
  • Software GrabCAD Print
  • Build Modes High Quality Speed (HQS) – 18.75μm
    High Quality High Speed (HQHS) – 20.625μm
    Long Print Mode – 18.75μm (allowing cartridge Hot Swap for selected material)
  • Brochure Download Brochure
DentaJet® XL

DentaJet® XL

  • Description The Stratasys DentaJet XL is a high‑volume PolyJet dental 3D printer designed to deliver precision at scale for crown and bridge, implant cases, and clear aligner model production. With multi material printing, large capacity resin cartridges, and an automated low touch workflow, it enables dental labs to increase throughput, reduce manual labor, and produce fully cured, highly accurate parts in a single unattended print job.
  • Support Materials SUP711S™
  • Build Size Printing area: 1,174cm2
    Print Height: 187mm
  • Layer Thickness Horizontal build layers down to 18 microns (0.0007 in)
  • Network Connectivity LAN - TCP/IP
  • System Size and Weight 65 x 152 x 66 cm (25.6 x 59.8 x 26 in)
    199 kg (439 lbs.)
  • Operating Conditions Temperature 18-25 °C (64 -77 °F); relative humidity 30-70% (non-condensing)
  • Power Requirements 100 -240 VAC, 50 - 60 HZ, 10A, 1 phase
  • Regulatory Compliance CE, cTUVus, FCC, Industry Canada, RCM
    Noise: 67 dB
  • Software GrabCAD Print
  • Build Modes High Quality High Speed (HQHS) - 20.625μ
    Super High Speed (SHS) - 61.875μ
    (for aligner arches only)
  • Brochure Download Brochure
J5 DentaJet®

J5 DentaJet®

  • Description The Stratasys J5 DentaJet is a professional, multi‑material PolyJet dental 3D printer designed to help dental labs scale production with high accuracy, realism, and efficiency. With the ability to print up to five biocompatible materials simultaneously on a large-capacity tray, it enables mixed dental applications, full‑color models, and monolithic dentures in a single unattended print job.
  • Support Materials SUP711™ (Water Jet removable), TrueDent Support
  • Build Size Printing area: 1,174cm²
    Max Part Size: Up to 140 x 200 x 190mm (5.51 x 7.87 x 7.48in.)
  • Layer Thickness Horizontal build layers down to 18 microns (0.0007 in.)
  • Network Connectivity LAN – TCP/IP
  • System Size and Weight 651 x 661 x 1511mm (25.63 x 26.02 x 59.49 in.); 228 kg (503 lbs.)
  • Operating Conditions Temperature 18 – 25 °C (64 – 77 °F); relative humidity 30 – 70% (non-condensing)
  • Power Requirements 100 – 240 VAC, 50 – 60 HZ, 10A, 1 phase
  • Regulatory Compliance CE, FCC, EAC
  • Software GrabCAD Print
  • Build Modes High Quality Speed (HQS) – 18.75μm
    High Quality High Speed (HQHS) – 20.625μm
  • Brochure Download Brochure

Optimize your lab’s production capacity with Stratasys dental printers.

Talk to an Expert

Customer Case studies

All Customer Success Stories

Learn how the J3 DentaJet, our compact printer for small to medium-sized labs, benefits dental laboratories and patients around the world.

dany-karam-and-bodie

Advanced Dental Technologies Increases Production Capacity 7X

ADT transformed its dental workflows using the J3 DentaJet, reducing labor demands, cutting costs & increasing production capacity sevenfold. Read more

View more
Glidewell priview page

Glidewell reaches new levels of productivity with Stratasys J3 DentaJet

The world’s largest manufacturer of custom dental services & implant manufacturer, reaches new levels of productivity & quality using J3 DentaJet. Read now

View more
Digitizes Implantation Process

Oxy Implant Digitizes Implantation Process with DentaJet 3D Printing Solutions

Dental Implant Specialist leverages Stratasys’ PolyJet technology for a multi-material approach in the creation of surgical guides

View more
dany-karam-and-bodie

ADT transformed its dental workflows using the J3 DentaJet, reducing labor demands, cutting costs & increasing production capacity sevenfold. Read more

View more
Glidewell priview page

The world’s largest manufacturer of custom dental services & implant manufacturer, reaches new levels of productivity & quality using J3 DentaJet. Read now

View more
Digitizes Implantation Process

Dental Implant Specialist leverages Stratasys’ PolyJet technology for a multi-material approach in the creation of surgical guides

View more
All Customer Success Stories

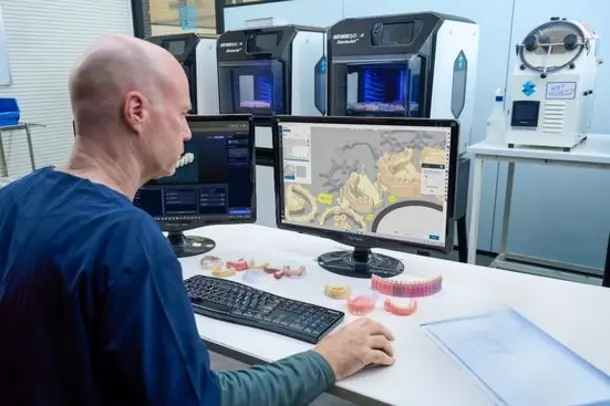

grabcad_implantology

GrabCad Print - Simplify Dental Production

Supporting all of Stratasys’ dental printers, GrabCAD Print streamlines the printing process with automatic support generation, fleet management, native CAD file support, real-time printer monitoring and more.
